I am having a hard time loading pics and text in English so here is a link to the blog...
https://medium.com/@ofer.bruhis/buil...r-f9682ba1acda
Printable View
I am having a hard time loading pics and text in English so here is a link to the blog...
https://medium.com/@ofer.bruhis/buil...r-f9682ba1acda
יפה מאוד.

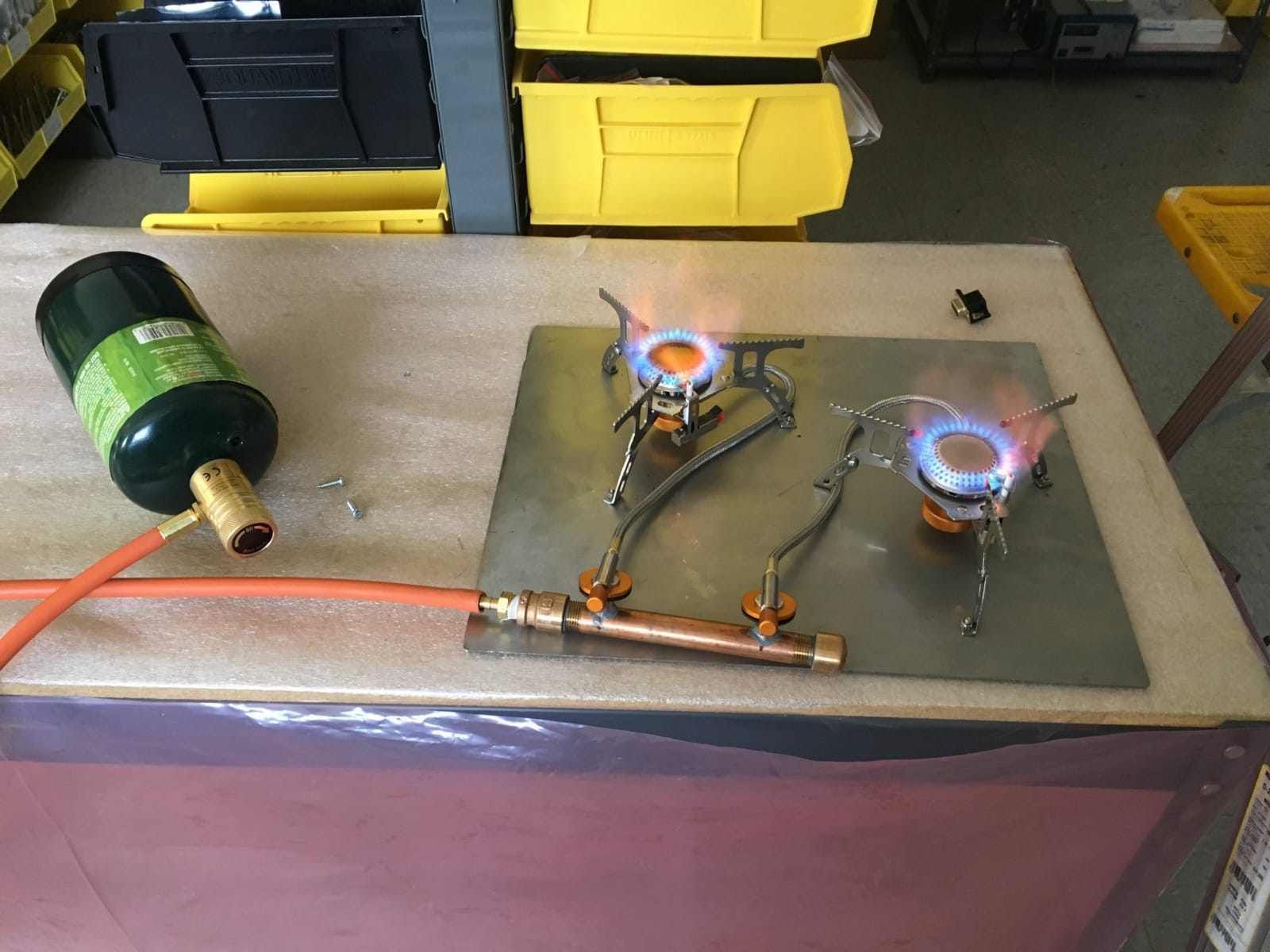

עניינה אותי במיוחד התמונה הזאת:
קובץ מצורף 124924
יש כאן כיוון מעניין לכירת שטח כפולה תוצרת בית.
הגזיות הנל נמכרות באתרים הסיניים בגרושים.
ואכן כמה פוסטים אחרי, מצאתי את זה:
קובץ מצורף 124925
הסיפור המופלא הזה הולך לאיבוד כאן בפורום.ציטוט:
נכתב במקור על ידי Ofer Bruhis
בקישור של עופר מסתתר בלוג מטורף עם תמונות שעשויות לעורר עניין רב.
אני אנסה לעזור ולהביא לכאן חלק מהתמונות וקמצוץ מאד חלקי מהסיפור...
הבלוג של עופר מתחיל כך (במקור נכתב באנגלית):
האלבום המלא של השיפוץ נמצא כאן - https://photos.google.com/share/AF1Q...1MU2VGMXB6RmFRציטוט:
לפני כ -25 שנה קנינו מכונית משפחתית - טויוטה FZJ80 Landcruiser משנת 1993.
המכונית שימשה אותנו במשך 20 שנה לקמפינג משפחתי ונסיעות באזור עיר המגורים.
כעת, לאחר שארבעת הילדים עזבו את הבית, אין לנו כל שימוש בו. מכיון שערכו (שווי למכירה) של הרכב נמוך, החלטנו שבמקום למכור אותו נשקיע בו ונהפוך אותו לביית נייד / קמפר עם כל היכולות של שהיה בכביש וגם בשטח בצורה עצמאית (לינה ומזון).
קובץ מצורף 124961
המשך החלק הראשון מהבלוג מובא כאן בשפת המקור (אנגלית):
ציטוט:

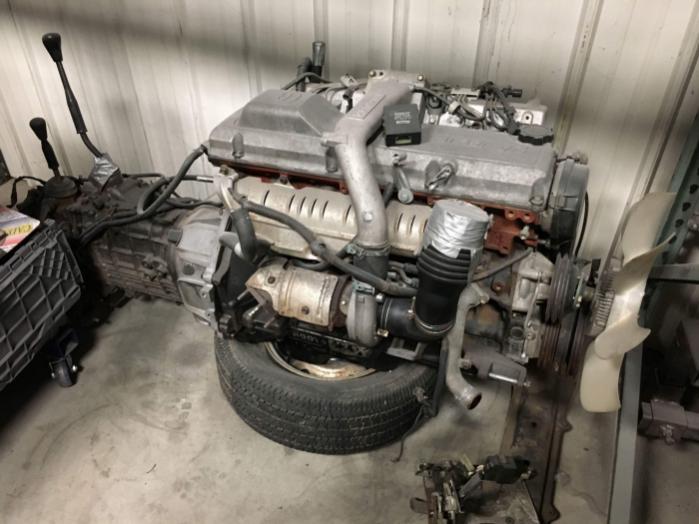

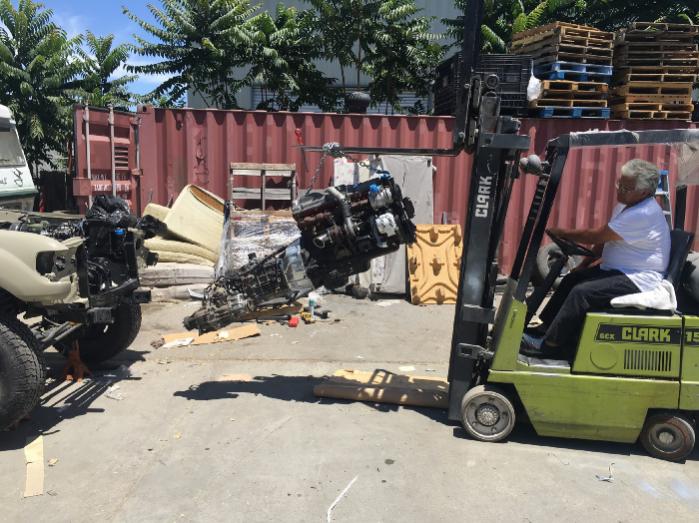

Searching for the right engine was a long process -we’re talking 2 years. After exhausting eBay and Craigslist, in December 2017 the engine was finally found through the North America Land Cruiser Community (through Facebook). The engine/drivetrain came out of a European HDJ81 Land Cruiser and was sent to Valley Hybrids, a shop in Stockton, California that specializes in diesel engine conversion for Land Cruisers. They replaced most of the external parts, rebuilt the injector pump and injectors, and did all the checks to verify that the engine was in excellent running condition. They also rebuilt the 5-speed transmission. The transfer case was converted to part time 2WD/4WD from all time 4WD in order to get even better milage on the highway. They have done an amazing job. We could have not chosen a better shop.
קובץ מצורף 124960

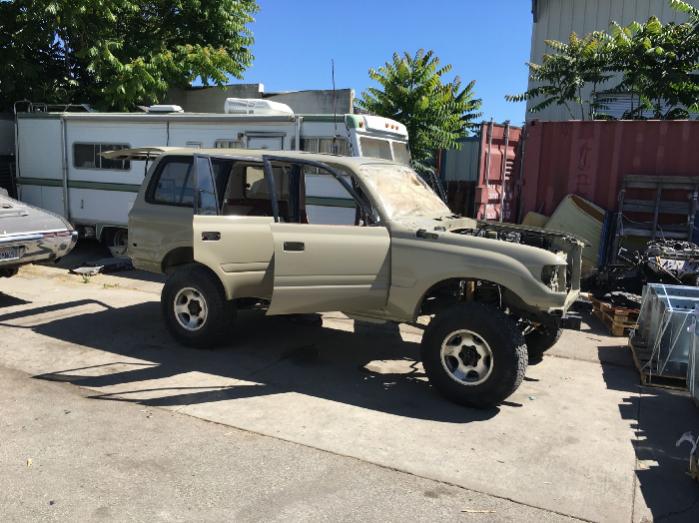

Meanwhile, “back at the ranch”, the vehicle was undergoing more changes. The bumpers were upgraded with more rugged units that can accept a winch and a spare tire in the back. The front seats were refinished with new leather and seat warmers. The two rows of rear seats were removed to allow space for a kitchen and bed.
קובץ מצורף 124959
The electrical and fuel systems had to be converted to the diesel engine and the transmission hump had to allow for the new manual shifters. The vehicle was then painted with a ‘sand’ color to blend better with nature.
קובץ מצורף 124958

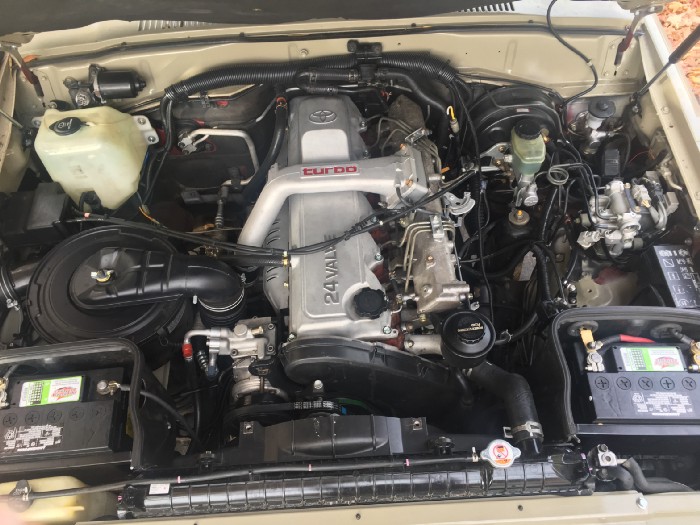

In June, the engine was completed at Valley Hybrids. We borrowed a truck and brought it from Stockton to San Jose, California. On a hot sunny day in July the engine was finally put into the vehicle. Since this engine was designed for this Land Cruiser model in other countries, little metal work modification was required.
קובץ מצורף 124957
The finished job on the drivetrain required testing before the work on the “tiny house” began. The car was driven for 1000 miles. It also required a trip to the CA DMV to change the title of the vehicle from gas to diesel.
קובץ מצורף 124956
The big test was a road trip from San Francisco Bay Area to Tempe. The vehicle was taken on a 2000-mile trip to Arizona including 4WD trails in Sedona. It drove beautifully and got 24 mpg. There were no mechanical issues. The last day it was driven over 1000 miles with one gas stop for 10 minutes.
קובץ מצורף 124955
Broken Arrow to Chicken Point, Sedona, AZ
We were ready now to move ahead with the interiors. At this point we added a second battery to support the ‘home’ part of the car. It is charged by the alternator when the engine is running and disconnects when the voltage drops below 12.5 VDC when the engine is not running. It will be hooked to a solar panel if the car will be parked for extended period of times while using the fridge.
קובץ מצורף 124954
Tali Hardonag Architects began the interior design of the vehicle in order to convert it into a “tiny home”. After a long search a marine grade fridge/freezer was selected to accommodate the limited space — Webasto BI-41 dual. The advantage of this model is that it has a detached compressor that can be placed up to 6 feet away from the fridge. It will probably reside behind the fridge inside the wheel well. We’re still scouting for a sink and a stove that will fit in the layout.
קובץ מצורף 124953
We’re currently finishing the design for the kitchen and building a mock-up from plywood in order to experience the space inside the vehicle.
קובץ מצורף 124952
We hope to move quickly in the next couple weeks… stay tuned!
האלבום מכיל המון(!) תמונות וגוגול-תמונות מאד מקשה על שילוב התמונות (embed) בפורום.ציטוט:
נכתב במקור על ידי erezgur
אני אנסה לשלב כאן מעט תמונות מהאלבום, ממליץ לעיין בכולם באלבום עצמו...

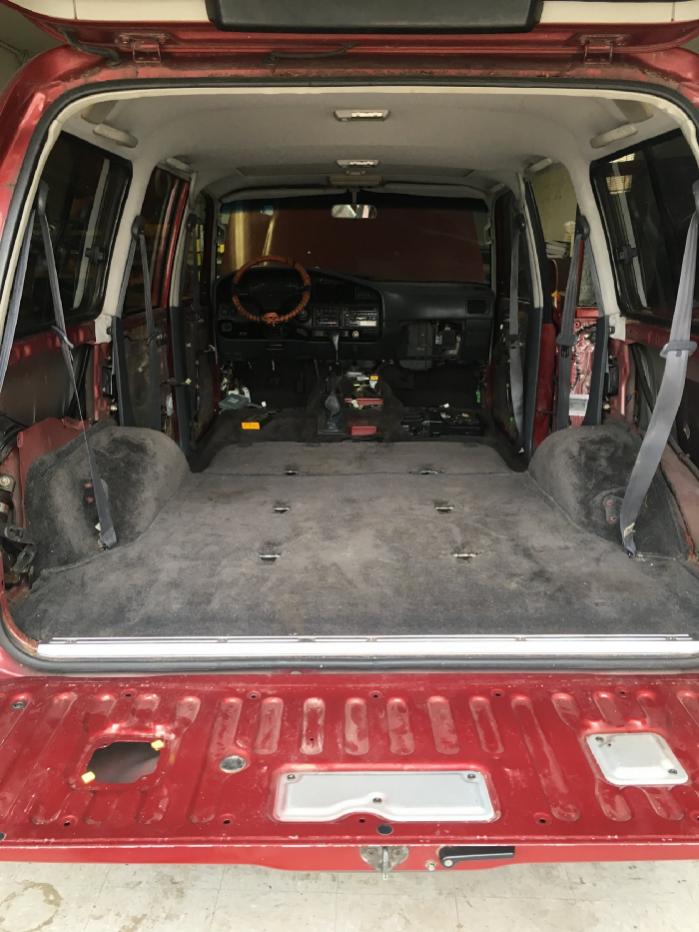

כנראה זה המראה המקורי לפני השיפוץ:
https://lh3.googleusercontent.com/lD...59-no-temp.JPG
https://lh3.googleusercontent.com/zv...59-no-temp.jpg
https://lh3.googleusercontent.com/Uk...59-no-temp.jpg
https://lh3.googleusercontent.com/Rf...59-no-temp.jpg
https://lh3.googleusercontent.com/EG...19-no-temp.jpg
https://lh3.googleusercontent.com/Uk...59-no-temp.jpg
https://lh3.googleusercontent.com/EZ...92-no-temp.jpg
https://lh3.googleusercontent.com/1t...19-no-temp.jpg
https://lh3.googleusercontent.com/2H...78-no-temp.jpg
https://lh3.googleusercontent.com/IL...78-no-temp.jpg
https://lh3.googleusercontent.com/y9...19-no-temp.jpg
https://lh3.googleusercontent.com/GO...19-no-temp.jpg
https://lh3.googleusercontent.com/5M...94-no-temp.jpg
https://lh3.googleusercontent.com/kI...29-no-temp.jpg
https://lh3.googleusercontent.com/b5...78-no-temp.jpg
https://lh3.googleusercontent.com/g3...78-no-temp.jpg
https://lh3.googleusercontent.com/CT...19-no-temp.jpg
https://lh3.googleusercontent.com/xa...19-no-temp.jpg
ארז,
תודה.
Slowly..
קובץ מצורף 124962
This is the original car 15 years ago. It is 1993 FZJ80 with 250000 miles.
הפרק השני בבלוג עוסק בבניית המטבח.
קישור למקור - https://medium.com/@ofer.bruhis/buil...-2-d05225f1b8a
מתוך עצלות אני אצטט את קטעי הטקסט בשפת המקור (אנגלית) ואטמיע כאן את התמונות.
קובץ מצורף 124976ציטוט:
New year 2019!
Our search for a sink and faucet zeroed in on a Kohler K-3349–1-NA. We liked it because its a sturdy 18 ga model, small and deep. The faucet will fold in to the well.

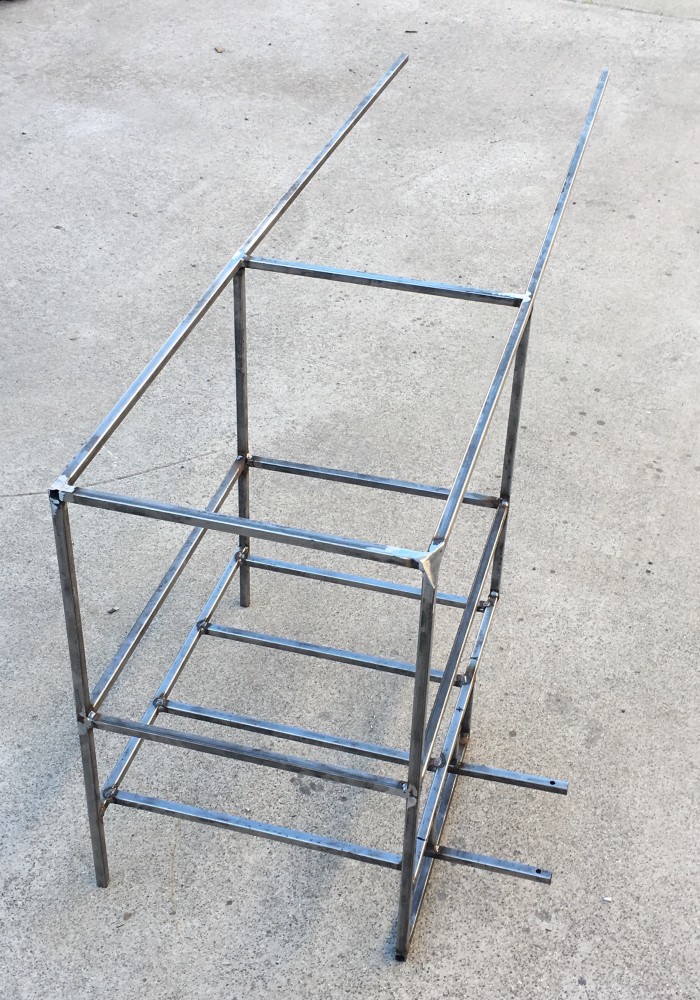

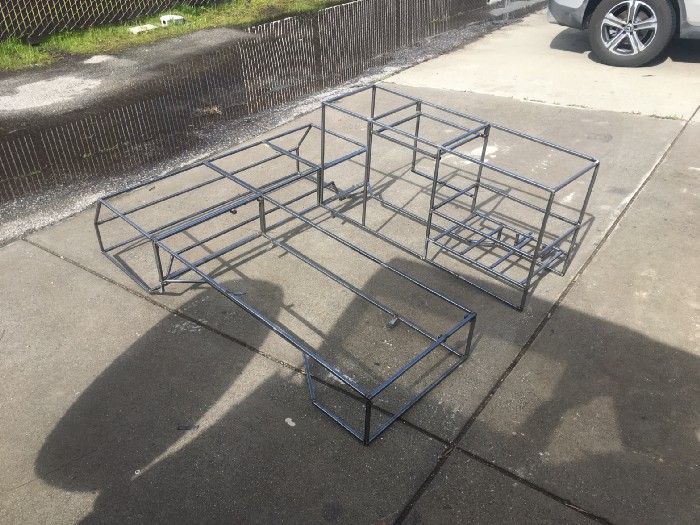

The cabinet frame is made of 1/2" square tubular steel frame. That would be covered in the future with aluminum sheets and powder coated gray to match the interior of the car. We sized the frame to fit the fridge.
קובץ מצורף 124975ציטוט:

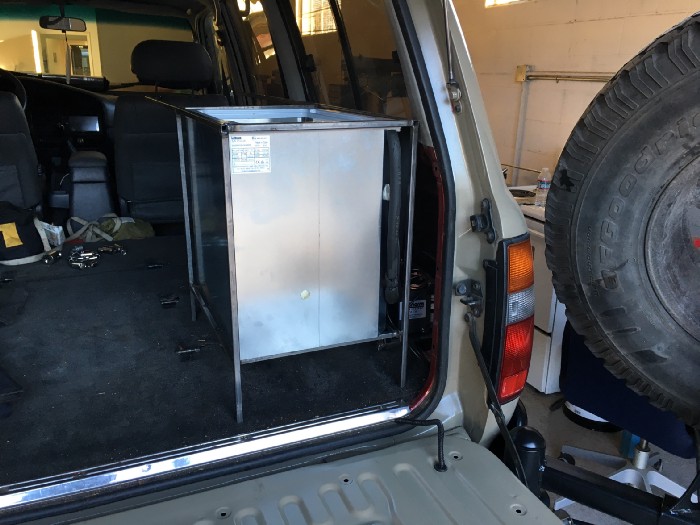

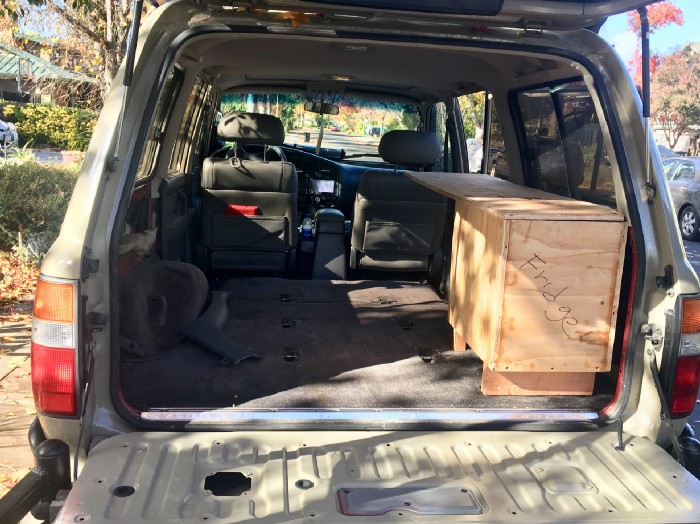

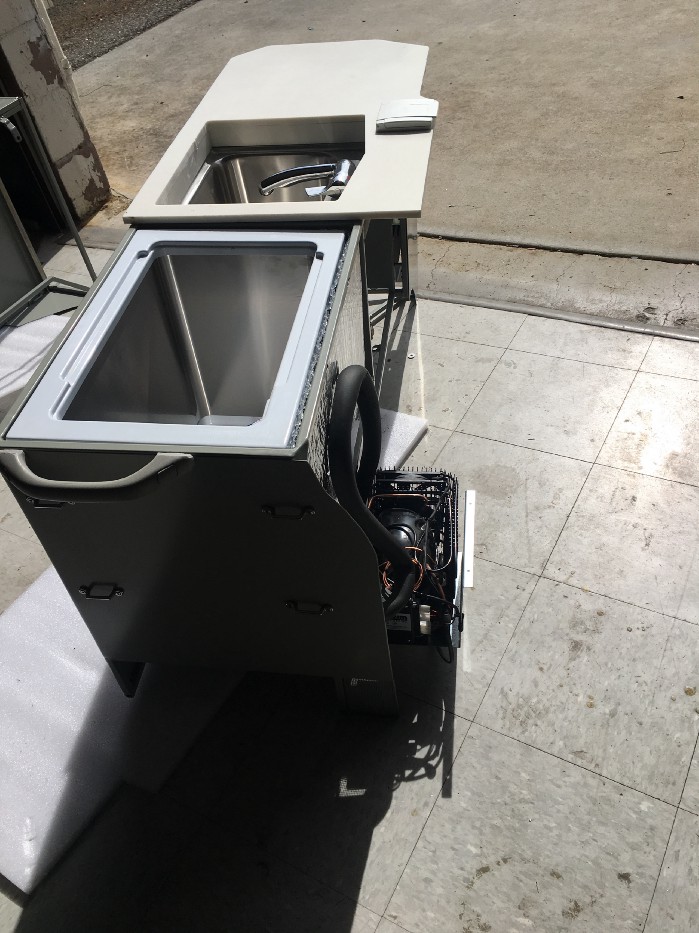

The fridge fits nicely with the compressor tucked into the wheel well.
קובץ מצורף 124973ציטוט:

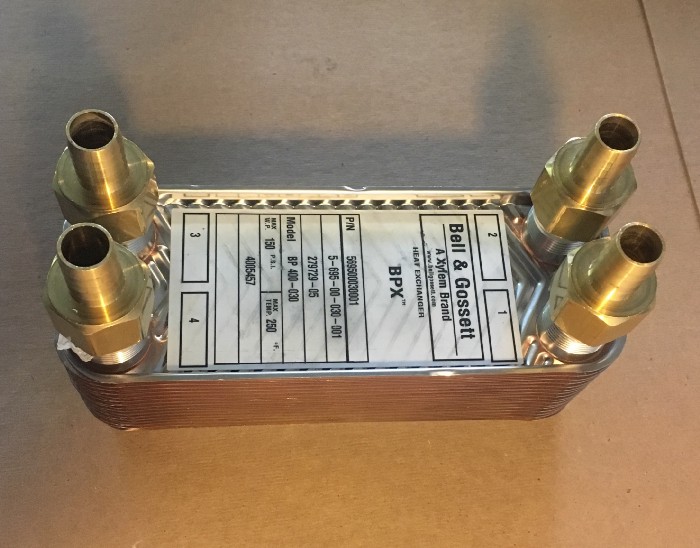

The Kohler sink heat exchange unit for the hot water system. We will have to find a place in the vehicle for this unit.
קובץ מצורף 124972ציטוט:

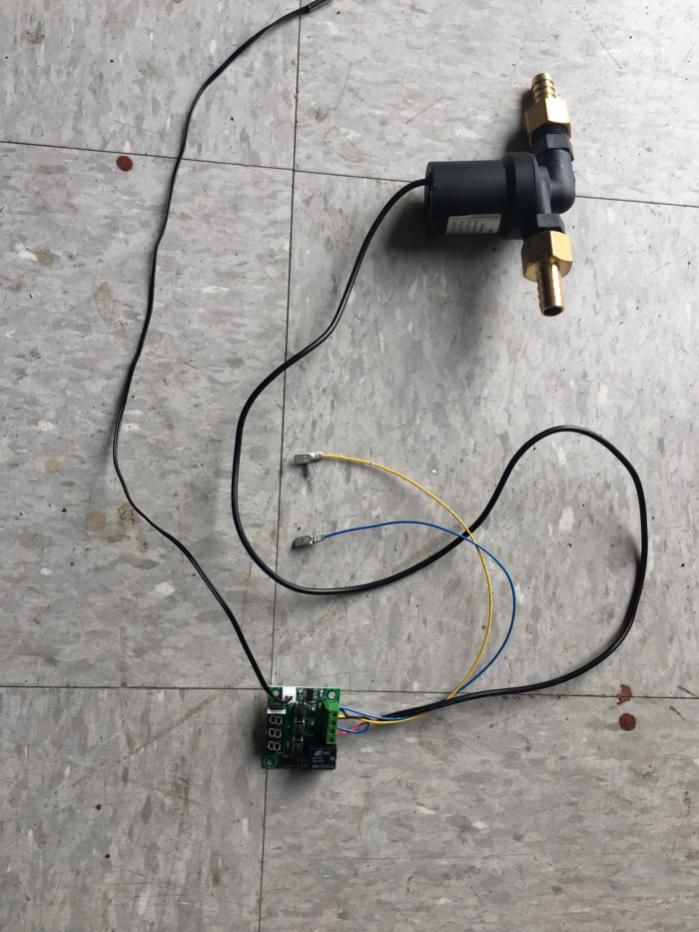

The water from the ‘hot water tank’ gets circulated with a pump that is being controlled by a thermostat. A switch on the dash will turn on and off the pump.
קובץ מצורף 124971ציטוט:
We had issues with space for the stove. We ended up building a stove from two camping stoves and some machined brass pipe parts. The connection was used from a torch welder and it hooks to a standard coleman propane tank. The stove was assembled and tested. It will require a wind shield and is designed to fit in a drawer under the fridge when not used. We can pull it back to cook by the tail gate, or to remove it completely and place it on the counter top for cooking in wet or cold weather.
ציטוט:
Our next task is to find drawers and finish the storage unit behind the front seats. Last we will build the couch that turns into a bed.
היה אמ-לק, אז רנראה פספסתי,
למה לקנות רכב בנזין ולהסב לדיזל, במקום לקנות ישר דיזל?
אולי השרשור הקודם שבו כתב עופר תמצא רמזים - http://www.jeepolog.com/forums/showt...l=1#post799495ציטוט:
נכתב במקור על ידי איל מ
הפרק השלישי בבלוג של עופר, עוסק בעיקר בריהוט הפנימי של הרכב.
קישור למקור - https://medium.com/@ofer.bruhis/buil...3-62f0545e0d8e
קובץ מצורף 124985ציטוט:
We have been busy. We leave for Alaska in 6 weeks. Not much time left. Rain has kept us from working, but we made some progress. We have been working on the frames for the kitchen, storage and bed.
The storage compartment will be behind the front seats with 3 aluminum lids that hinge. We are not sure if we want this as compartments or one large storage that can be divided by boxes or storage bags. The two hatches on the driver side and center will have 2" cushions and will be the upper part of the bed.
קובץ מצורף 124984ציטוט:

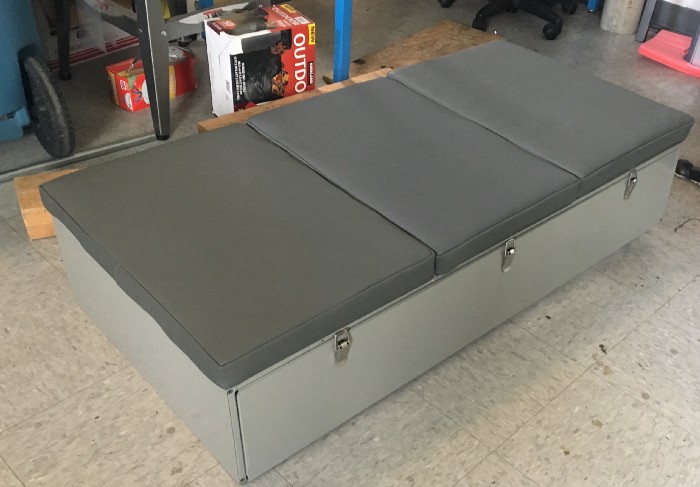

The lower side of the bed will be a bench that has a slider part that opens to a twin bed. The bench will have 3 cushions so that passengers will be able to sit on a bench seat in the back. They will have leather on top to match the front seats. The bench also has a storage area underneath.
קובץ מצורף 124983ציטוט:
There will have to be some latches to lock it in place. We will also install a back cushion for the bench, that will be removable and used as the part of the mattress that covers the slider part of the bed.
קובץ מצורף 124982ציטוט:

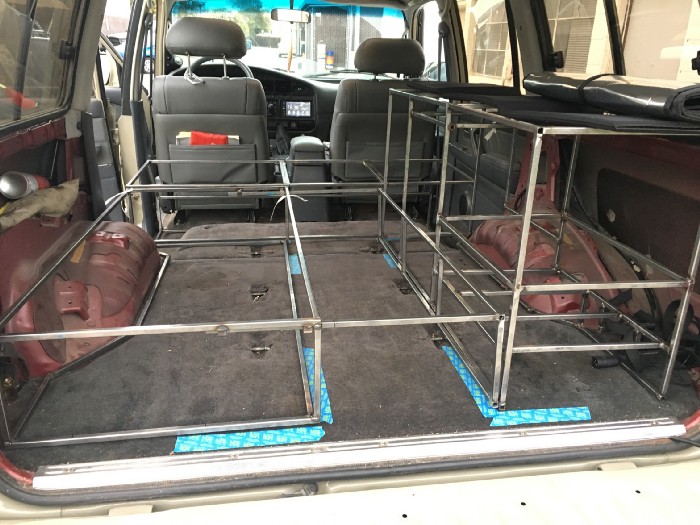

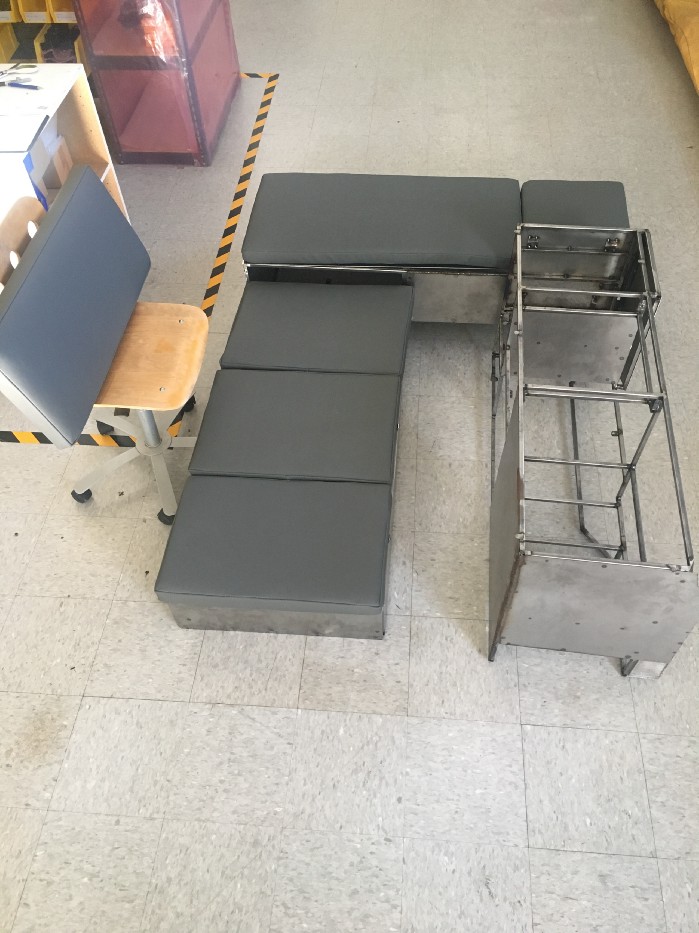

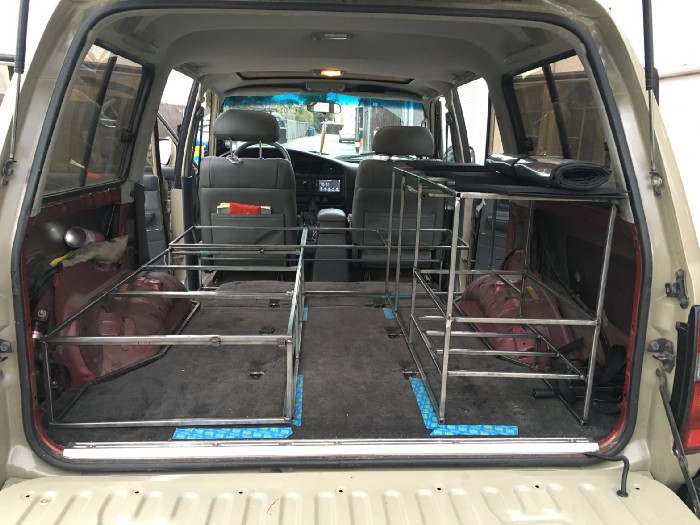

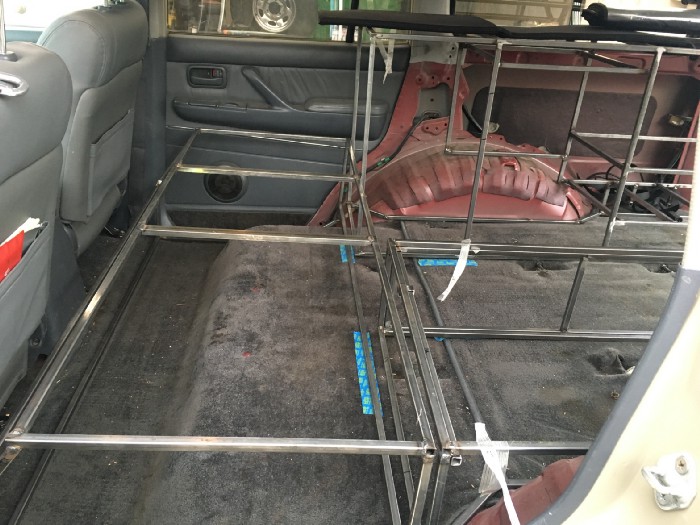

These 3 frames will be attached to each other and to the vehicle itself with screws. They will not be permanent, and can always be removed.
קובץ מצורף 124981ציטוט:
We ordered SkyCart aluminum drawers and installed them with extension glides. The bottom drawer is a bit lower to allow taller pots to fit in.
קובץ מצורף 124980ציטוט:

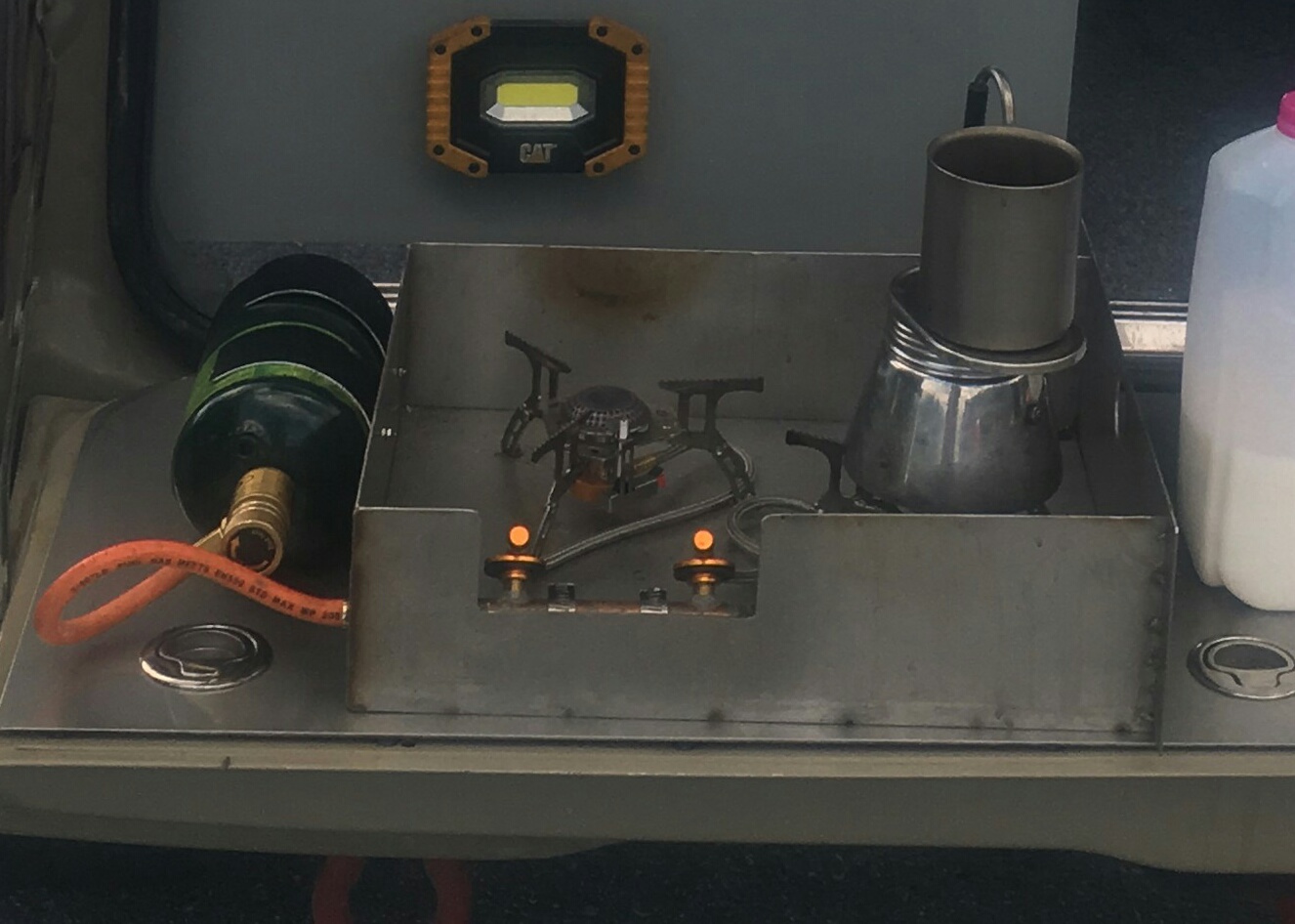

Stove work is done and it has been tested.
קובץ מצורף 124979ציטוט:

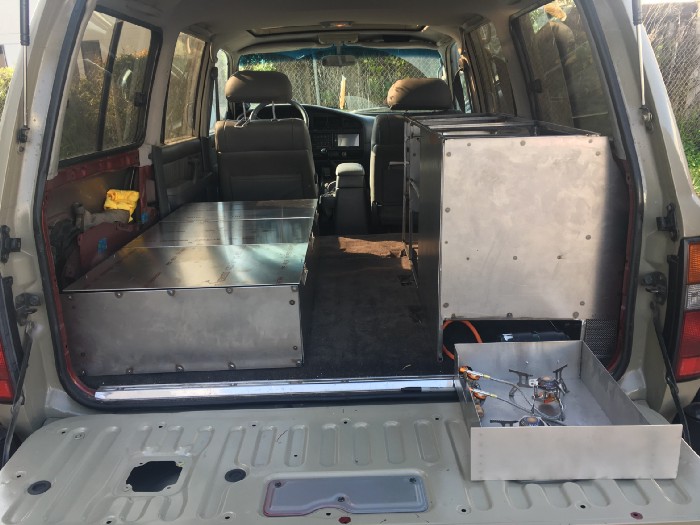

The stove will slide under the Fridge. We can pull it out and work on the tailgate or on a table. If weather gets bad, we may be forced to cook inside.
קובץ מצורף 124978ציטוט:
Kitchen cabinet got aluminum doors. This is 6061-T6 0.1" thick. All metal work will be powder coated.
קובץ מצורף 124977ציטוט:

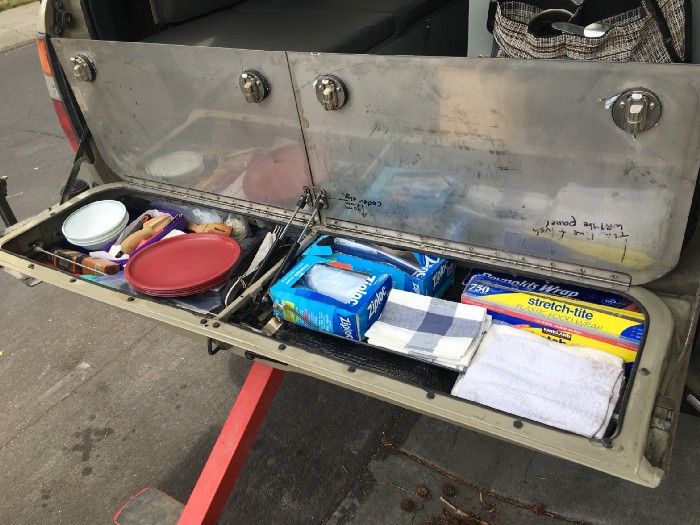

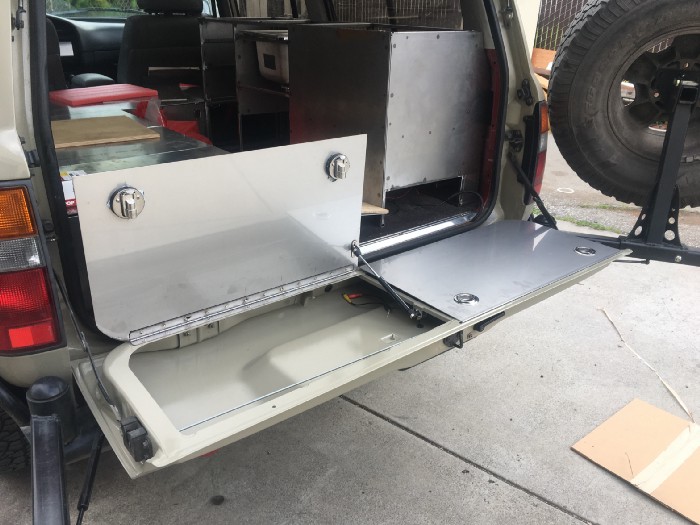

The rear tail gate has food grade stainless steel plates with latches so that we can store all the recovery gear. It is a bit heavy, so when opening it, care must be taken.
קובץ מצורף 124989ציטוט:

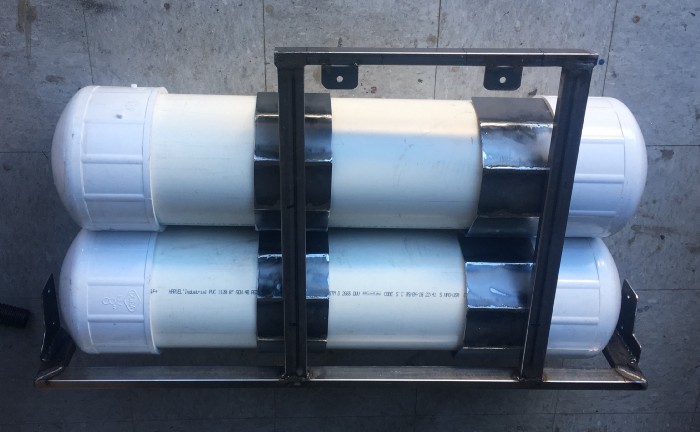

The bracket for the water tanks that sit under the vehicle is done. Water tanks are 8" PVC schedule 40 with caps. Each tank provides 30 liters of water. One of the tanks will be hot water. A circulating pump with a thermostat will run the water through a heat exchange unit with the radiator coolant. The compressor will pressurize the tank so that water will ‘climb’ to the faucet and shower. Ha, yes, the shower…
קובץ מצורף 124988ציטוט:

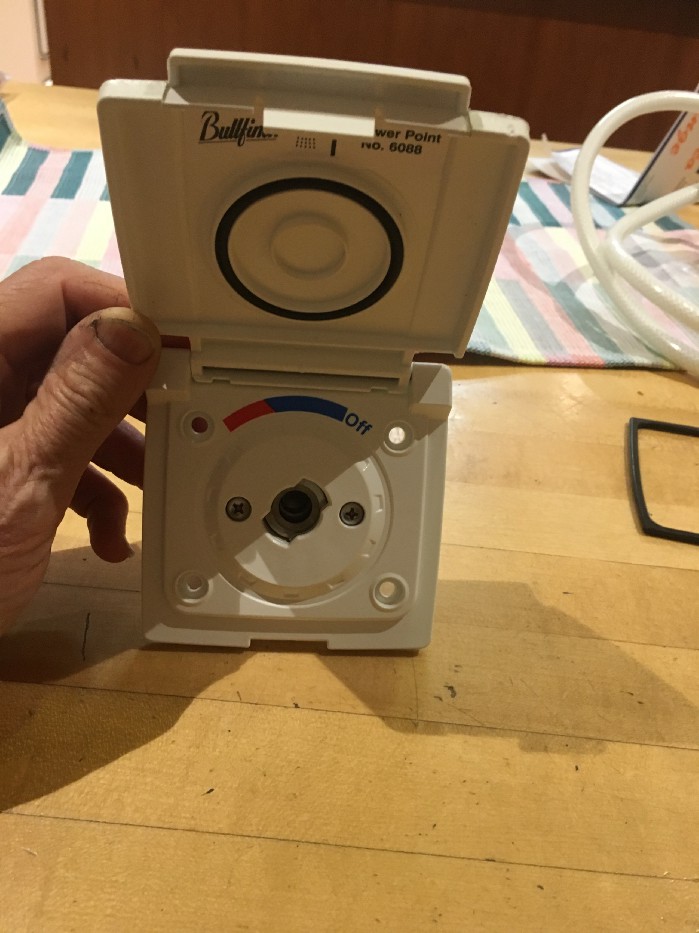

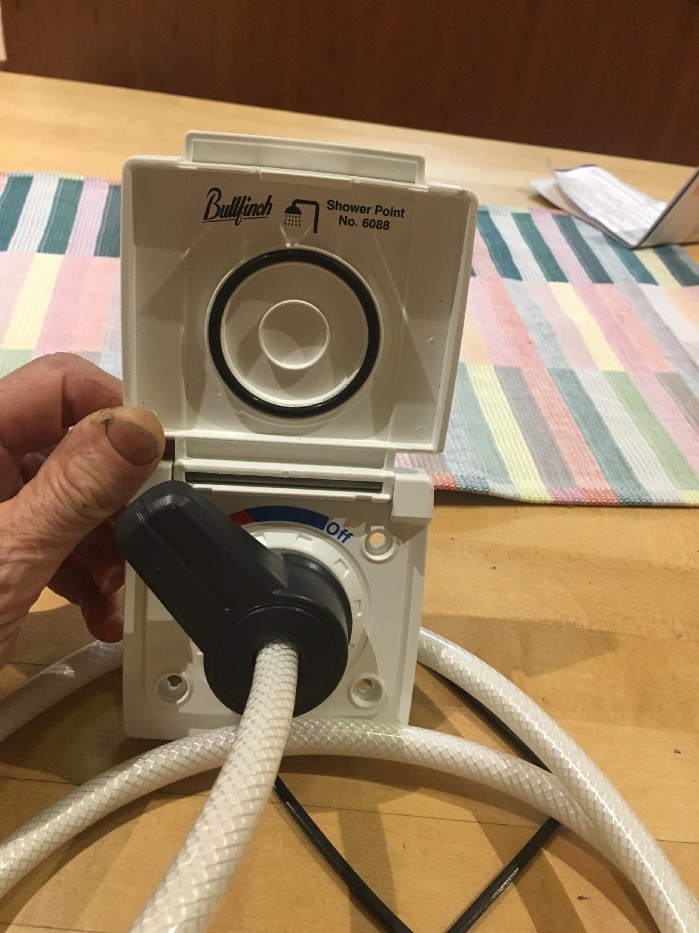

The exterior shower unit is a Bullfinch shower head. The unit is well made, and very compact. We will let you know how clean we come out.
קובץ מצורף 124987ציטוט:
The shower head plugs in and has the handle integrated into it.
קובץ מצורף 124986ציטוט:

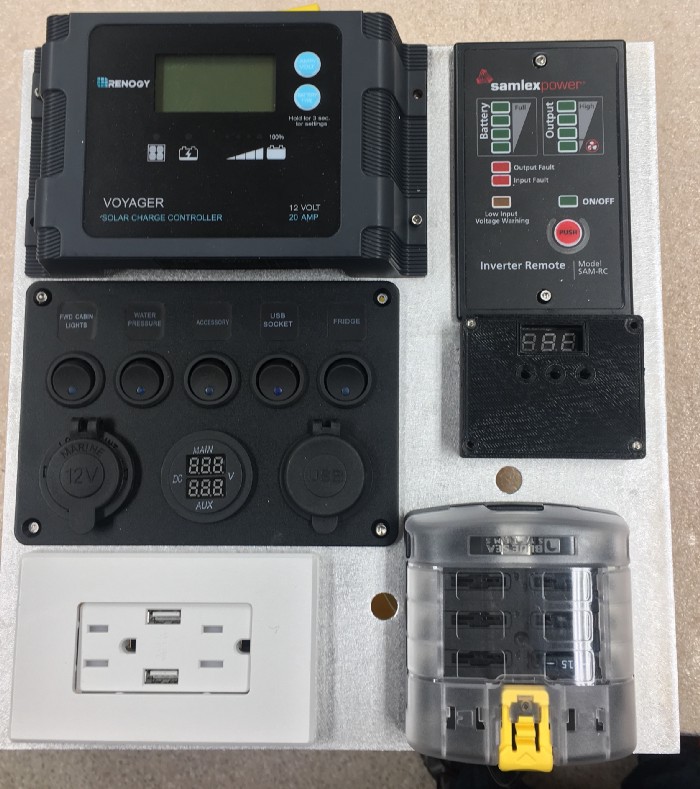

Also, the electrical panel is being assembled. Solar panel controller, 110 VAC Converter panel, main switch panel, thermostat controller, 110V plug and fuse box. A main disconnect will be added as well.
ציטוט:

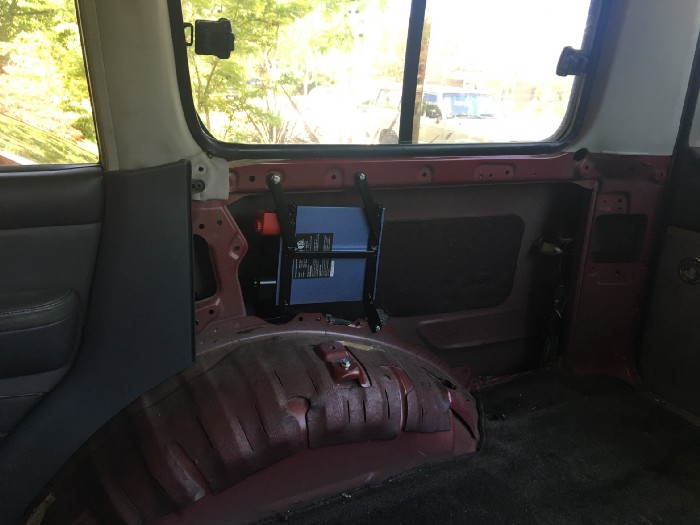

The 110VAC 1KW converter was mounted inside the wheel well to save space.
I guess we will post this public, and continue working…
הפרק הרביעי בבלוג של עופר ממשיך בתיאור התוספות החיצוניות והשלמת הפרטים לקראת הטיול שלהם לאלסקה.
קישור למקור - https://medium.com/@ofer.bruhis/buil...4-f42b8a338006
קובץ מצורף 124999ציטוט:

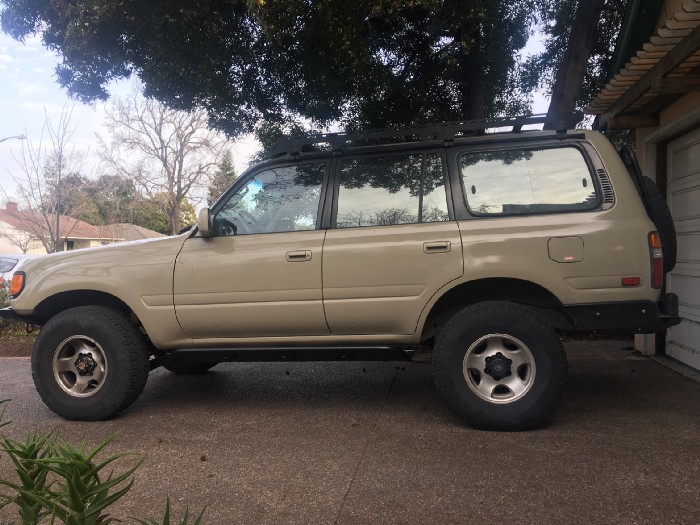

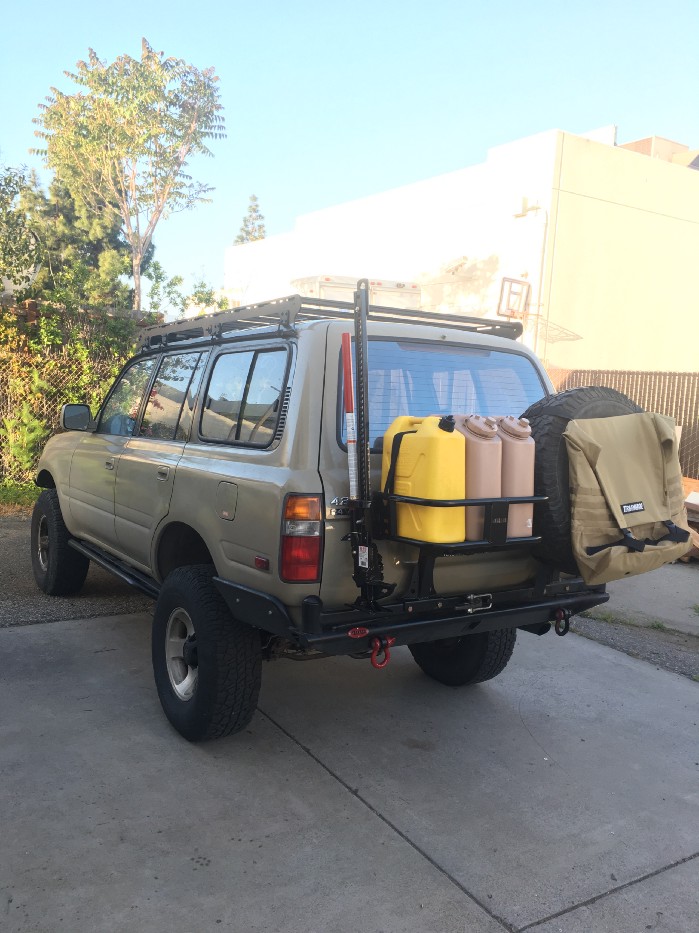

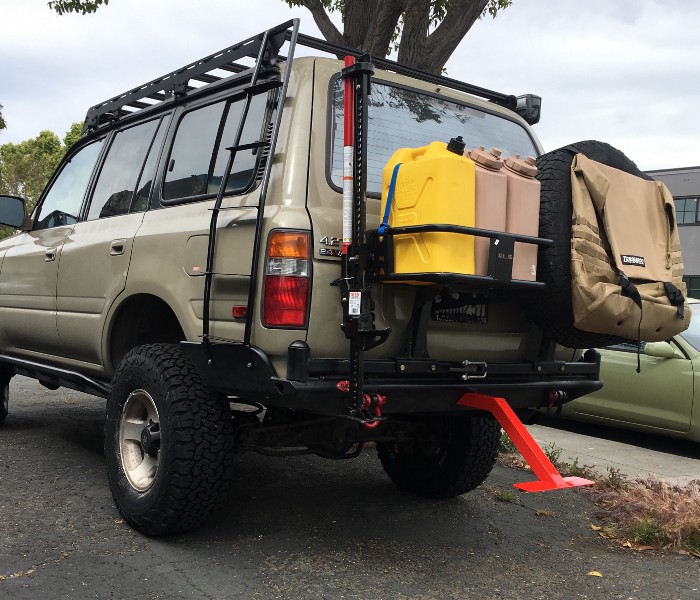

A bit more work on the exterior. Added rock sliders and new Old Man Emu suspension from Cruiser Outfitters. The suspension is a bit stiffer because of all the expected load we are planning to add to the car. Only thing left on the outside are tires. We planed to put BF Goodrich 295/75R16 but they are not available anywhere. Bummer. Just ordered on Costco 285/75R16. Maybe next time.
קובץ מצורף 124998ציטוט:
We also added a rack from 4x4 Labs. Luke is an amazing guy and a great designer. It supprts 3 Jerry Cans and a High Lift. The roof rack is made by Prinsu Design in Idaho. It easily mounts on the vehicle and spreads the weight. Very well desined!!
קובץ מצורף 124997ציטוט:

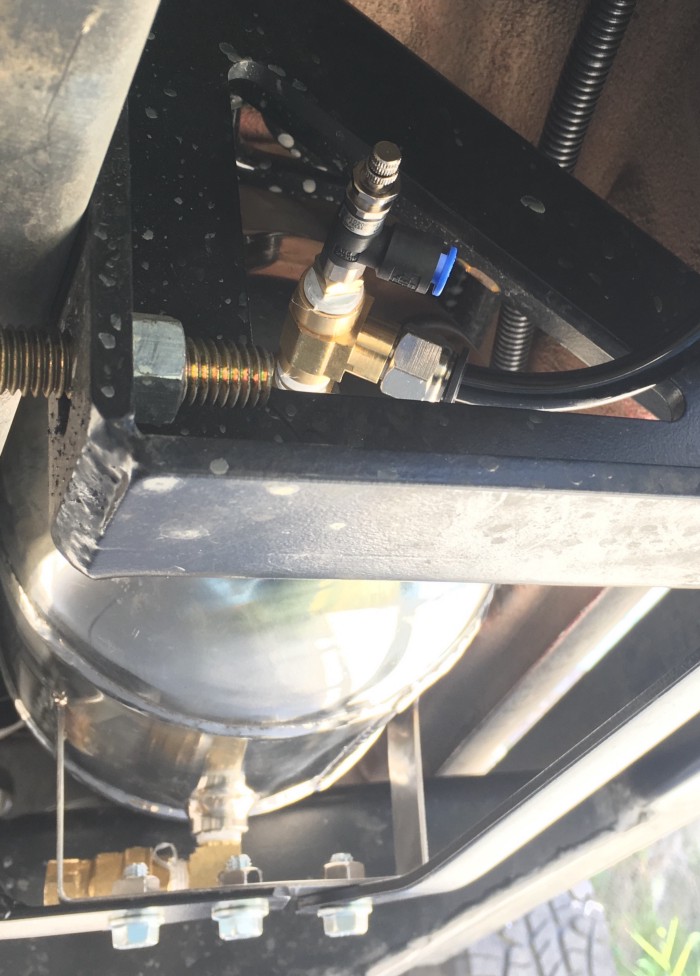

The air system was installed with an ARB compressor and a 1 Gallon air tank. A pressure reducer was required for the air system that pushes the water up out of the tanks to the faucet and shower head. We are fighting gravity all our lives…
קובץ מצורף 124996ציטוט:
The ARB awning was installed with custom made brackets.
קובץ מצורף 124995ציטוט:

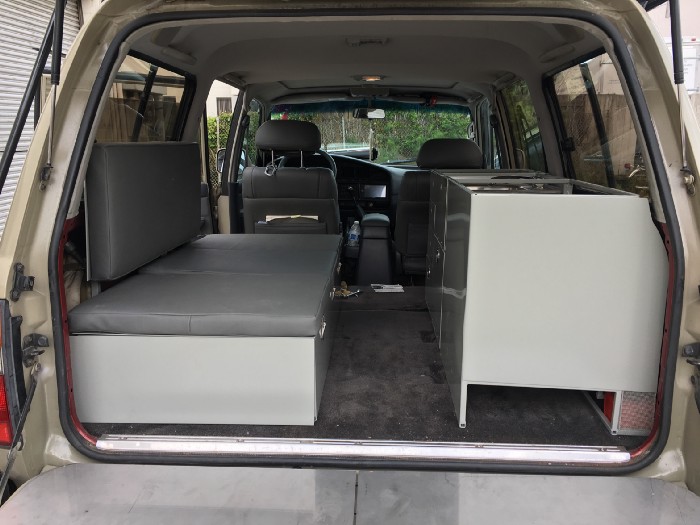

The interior was done by Sid’s Custom Upholstery (Alex is professional, charming and highly recommended) and was finished yesterday. All the cushions are leather to match the from seats. We used 2" firm foam to leave as much headroom as possible. All the leather was purchased from LSEAT and they have very good service.
קובץ מצורף 124994ציטוט:

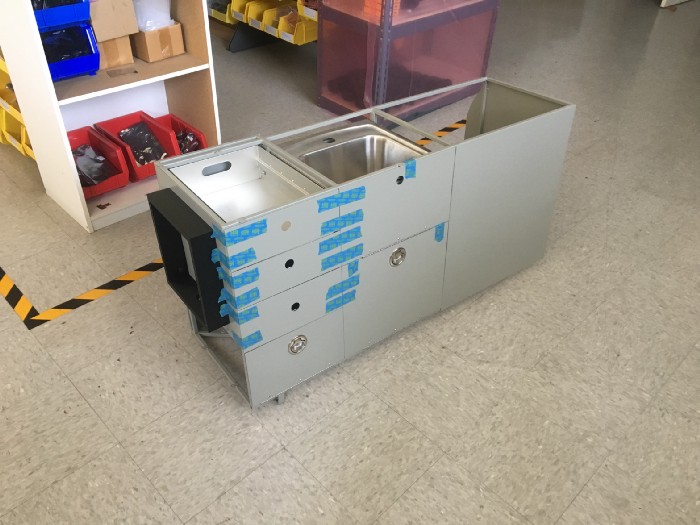

The cabinets were finally powder coated with Navy Gray (Cardinal GR-01) by Moises Finishing in San Jose. We installed the drawers with soft close glides. Also, all the sheet metal inside was covered with noise dampening sticky material. The couch/bed had the leather cushions installed with stainless snap buttons.
קובץ מצורף 124993ציטוט:

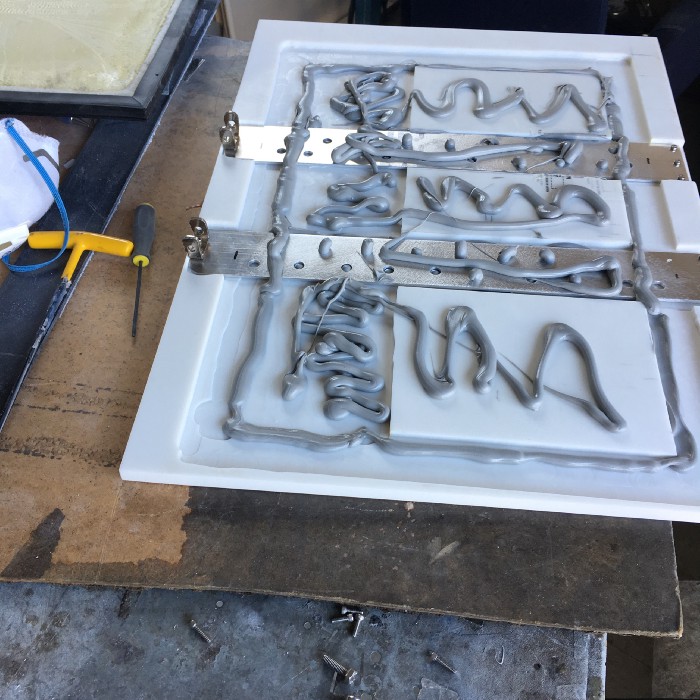

The finished panels for the drawers were installed using 100% silicon to glue them. We hope it will hold.
קובץ מצורף 124992ציטוט:

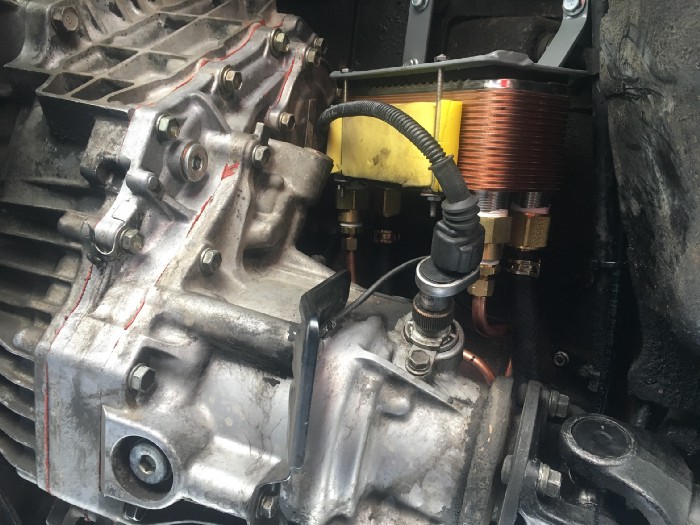

The heat exchange was mounted above the transmission. There was just enough space for it. Silicon hoses to the radiator water. Rigid copper for the drinking/shower water.
קובץ מצורף 124991ציטוט:

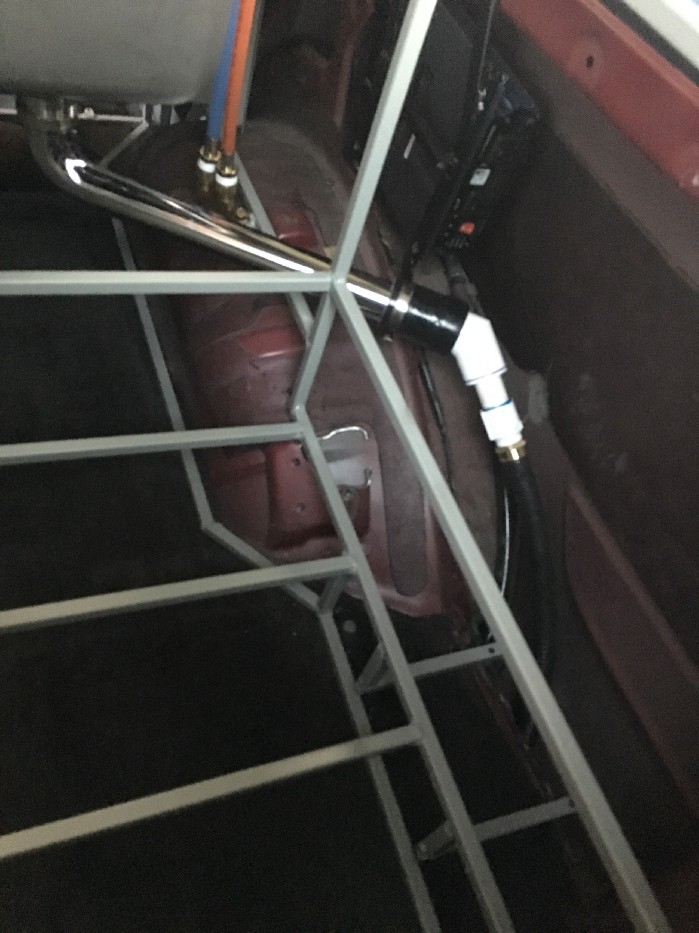

The drain for the sink was hooked up. The last section is silicon hose and it exits behind the right rear wheel. An extension can be attached if we want the water to flow away from the vehicle. Otherwise we can just put a small bucket.
קובץ מצורף 124990ציטוט:
Now that the cabinets are ready, It’s time to finish the plumbing and electrical.
קובץ מצורף 125001ציטוט:
Just figured that we need to run wires down from the solar panels on the roof. We figured a ladder would serve two functions. Also added a step to climb to the back, since the tail gate is 36" off the ground. Ah, yes, and we got new tires!
קובץ מצורף 125000ציטוט:

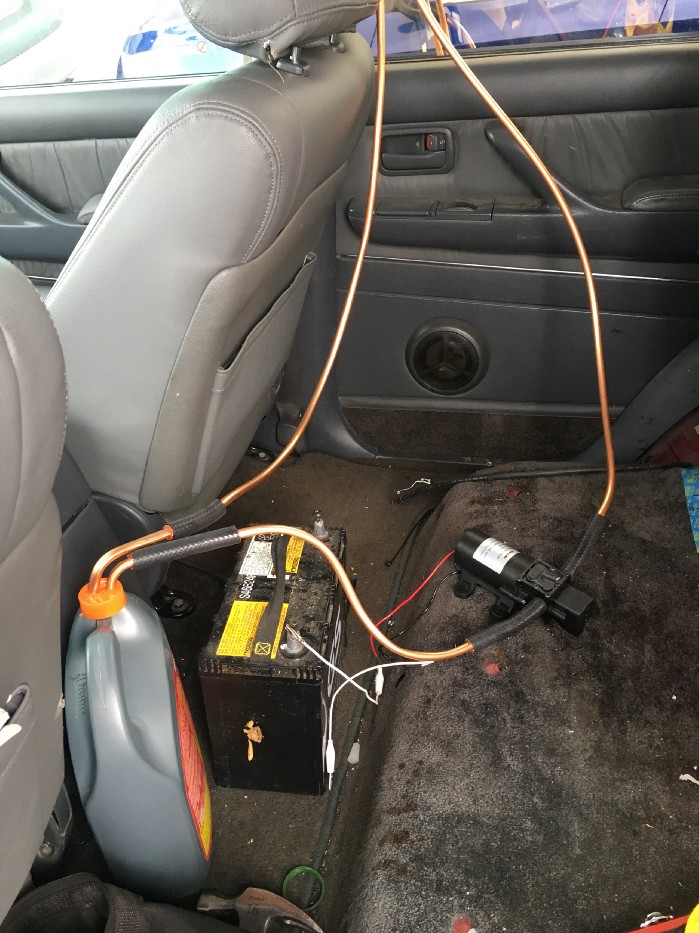

We did a test of the hot water system. Ran it through a 1 gallon container. It took 10 minutes to bring it to temperature. Seems like we will have hot water after all. The original pump that we chose was not self priming, so we chose a different pump. We used an old prius battery to run the pump.
ציטוט:
We leave to Alaska in less then 4 weeks, and now everything must come together. OK. It’s time to post.
הפרק החמישי בבלוג של עופר, מה-8 ליולי, רק 3 שבועות לפני הטיול הגדול שלהםhttps://medium.com/@ofer.bruhis/buil...5-1f1e19716912
קובץ מצורף 125022ציטוט:
Only 3 weeks left until the trip. Things are coming together. The electrical is almost done. Some of the wires had to be run under the carpet, so we pulled everything off the back and cleaned before starting to assemble.
קובץ מצורף 125023ציטוט:

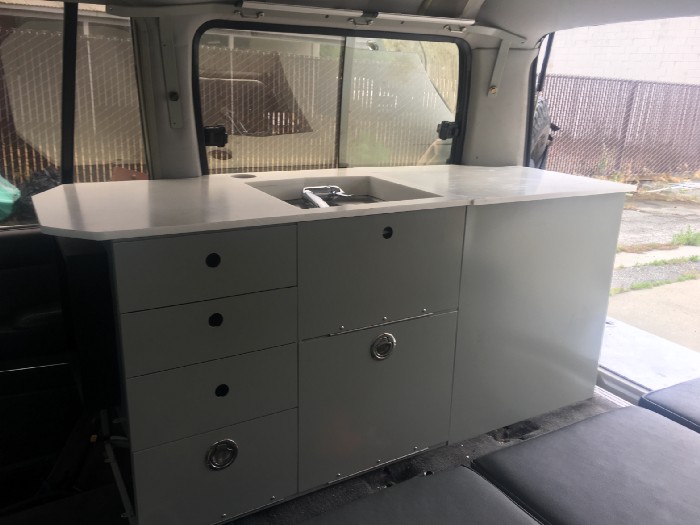

We used an old Corian slab to build the countertop. It takes a long time to get everything accurate, but once it’s assembled it looks great. The material is easy to work with and the glue lines are almost invisible
קובץ מצורף 125024ציטוט:

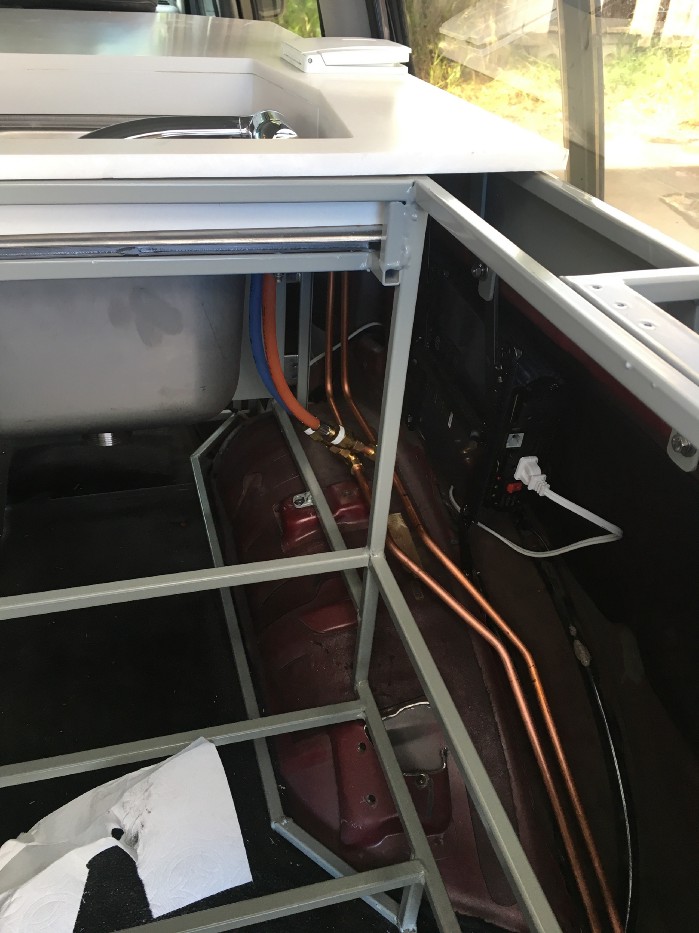

We used 3/8" copper pipe for the water system. Most used compression fitting, except in a few places that used a silicon hose with clamp to relieve the stress of the vibrations.
קובץ מצורף 125025ציטוט:

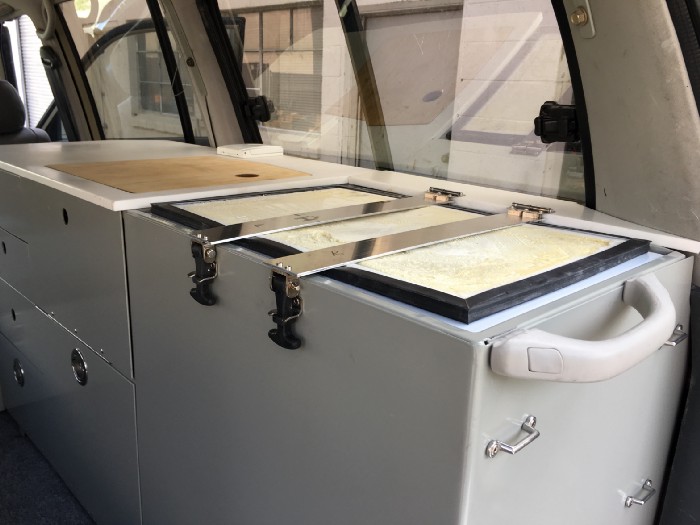

The lid for the fridge gave us a bit of a problem. For a $1000 fridge, the quality of the lid is not great. It just sits on the top of the fridge and is made of molded plastic with a sheet of Formaica on top. We figured that securing is a must, so we used removable hinges on the back, and rubber latches in the front. All this had to be integrated into the lid and a Corian on top of it all. It was a time consuming task.
קובץ מצורף 125026
קובץ מצורף 125027ציטוט:

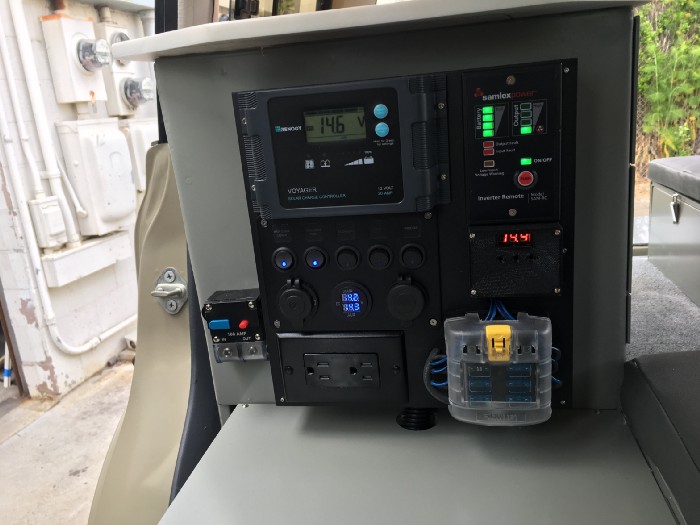

The electrical panel is all done and ready to be hooked up.
קובץ מצורף 125028ציטוט:

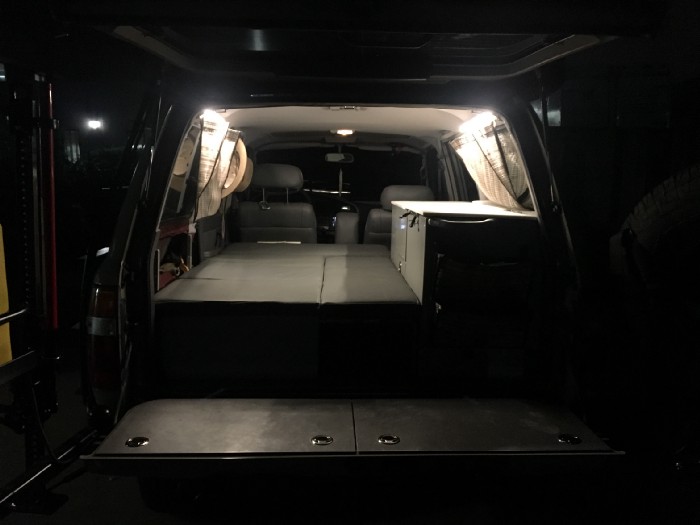

Interior lights were tested with the ‘bed’ opened.
קובץ מצורף 125029ציטוט:

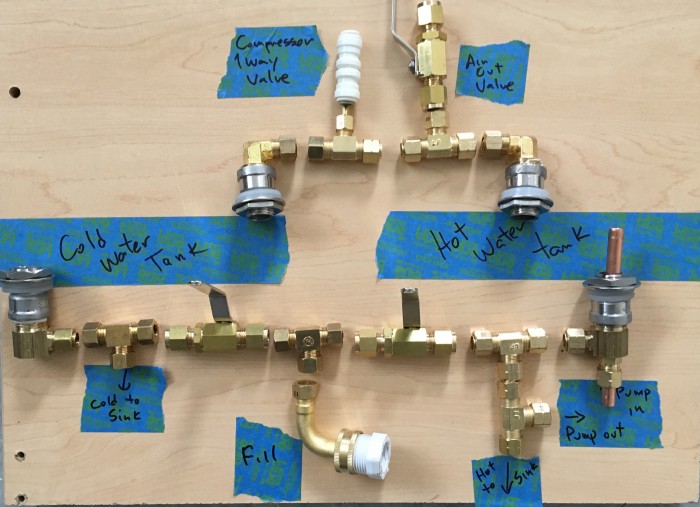

The layout for the water tanks was done before construction.
קובץ מצורף 125030ציטוט:

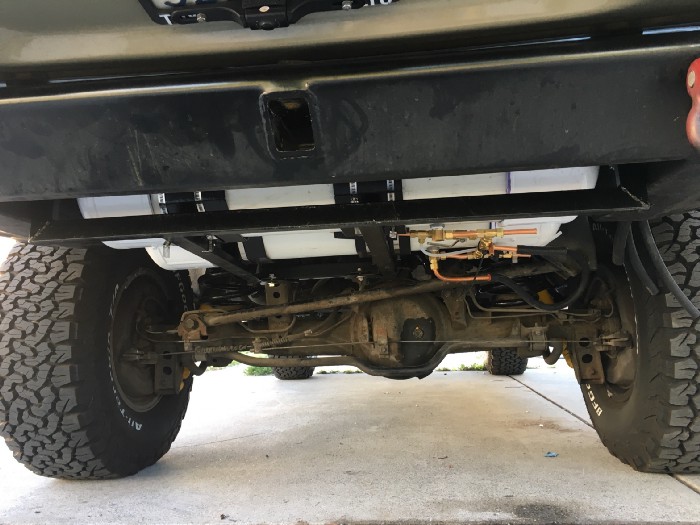

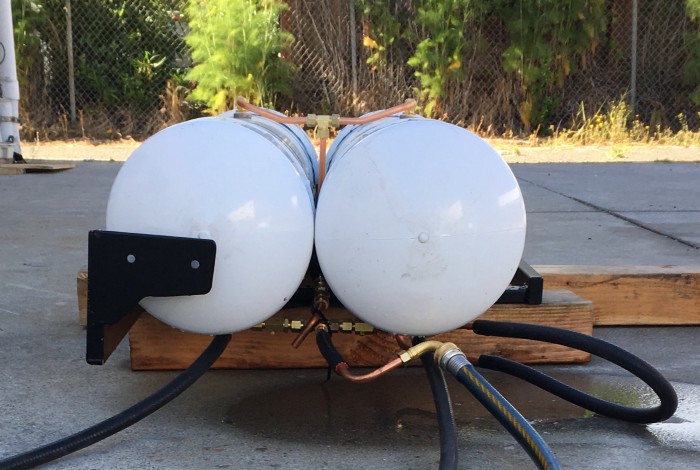

The water tanks were finally finished after a pressure test, and installed under the vehicle. We used 8" PVC pipes and they provided 9 gallons each. It heats 9 gallons to 150F in 18 minutes when the engine is running and warm.
קובץ מצורף 125031
קובץ מצורף 125032ציטוט:

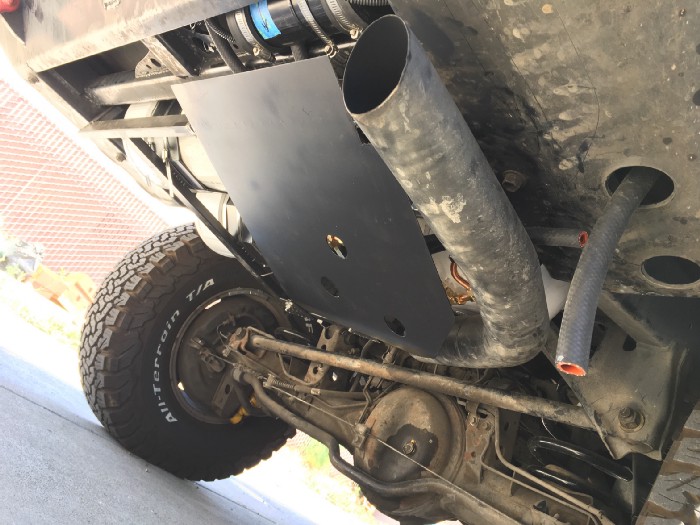

We added a protective plate for the plumbing.
קובץ מצורף 125033ציטוט:
The circulating pump was installed inside a PVC pipe to provide some protection. It was installed in the rear bumper.

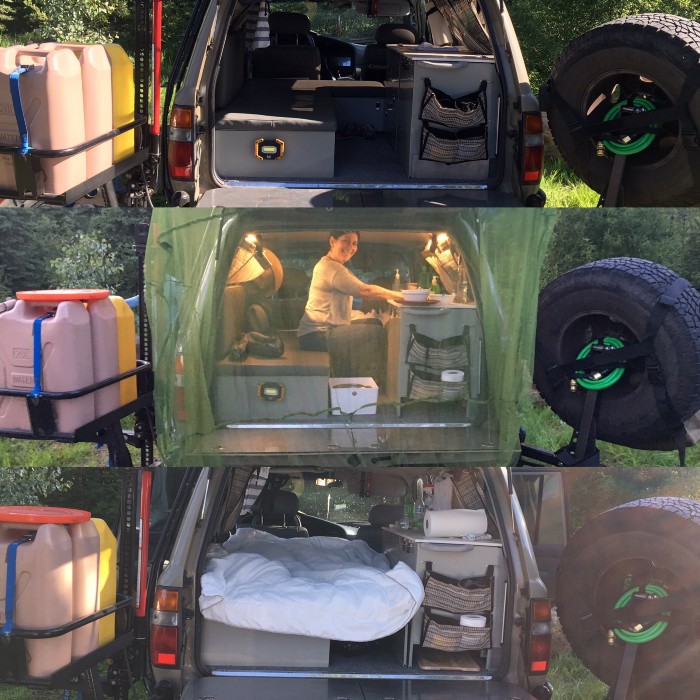

So the setup for the three modes of the car — drive, cook, sleep are below..
ציטוט:
At this point the vehicle was ready for the first test. An 8000 miles trip to Alaska.
הפרק השישי והאחרון בבלוג של עופר - המסע הגדול לאלסקה עם הרכב.
8000 מיילים שהחלו ב-14 ליוני והסתיימו בשלום וללא נזקים מיוחדים.
קישור למקור - https://medium.com/@ofer.bruhis/buil...t-838daff98928
Our depature date was June 14. The destination Alaska. It was an 8000 miles round trip that would put the vehicle and all the systems to a test.
קובץ מצורף 125075

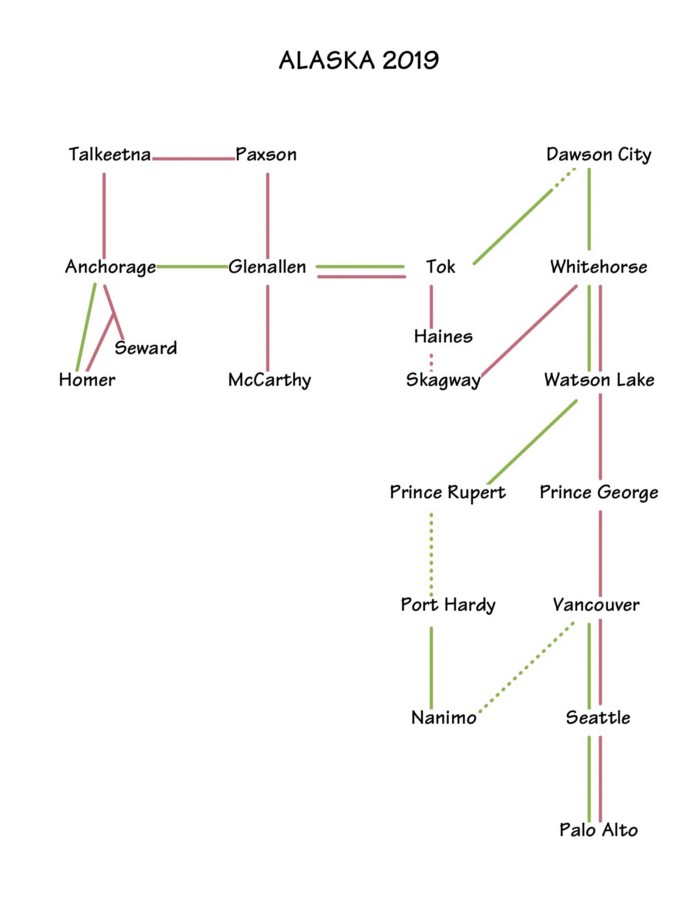

We planned the route so most roads would be traveled once starting and ending in Palo Alto, CA. Dashed lines are done in a ferry, green is the return route.
קובץ מצורף 125076

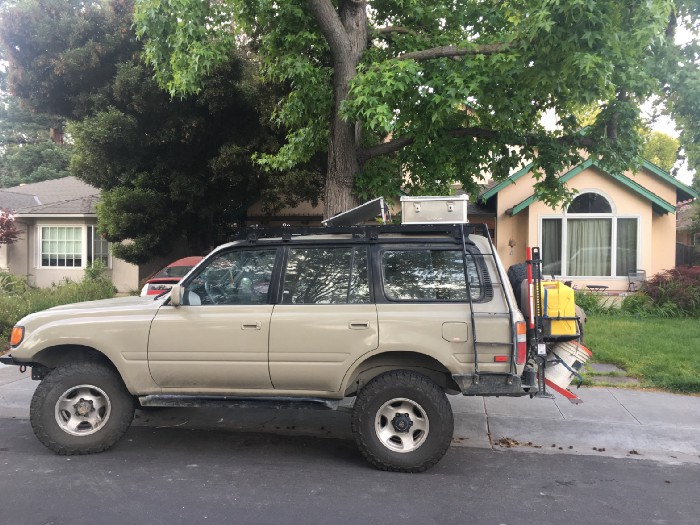

The build was finished 12 hours before the departure. The water system was leaking under pressure. It used mostly 3/8 pressure fittings and we ended up wraping the connection with teflon tape before puting the pressure fit nut. Also the pressure reducer helped. We fitted two alu-boxes on the roof and a solar panel that worked as a wind deflector. One box had dry goods, and the other every tool, part and screw that we thought could go wrong.
קובץ מצורף 125077

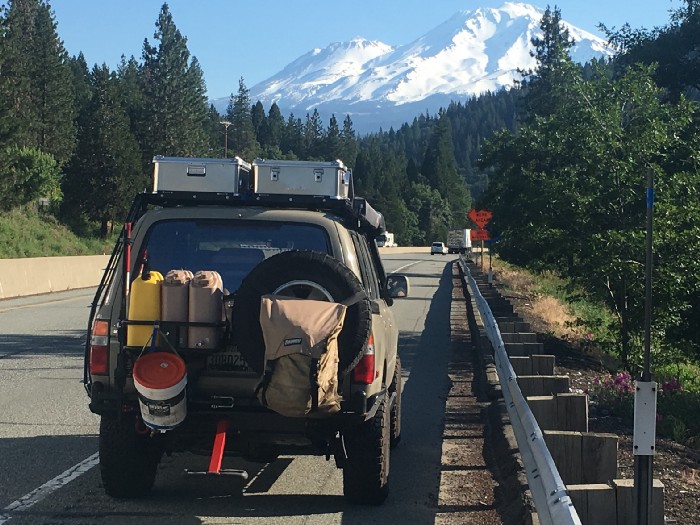

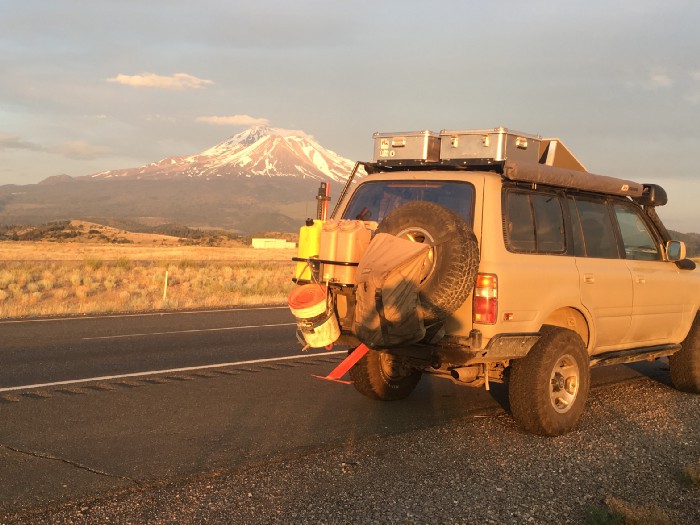

The first 300 miles went well. We made it to Mount Shasta.
קובץ מצורף 125078
We stopped at a friend’s home in Seattle and our first camp was in Blue Lake, BC. Setup worked amazing. We cooked dinner and went to bed. No shower that night.
קובץ מצורף 125079

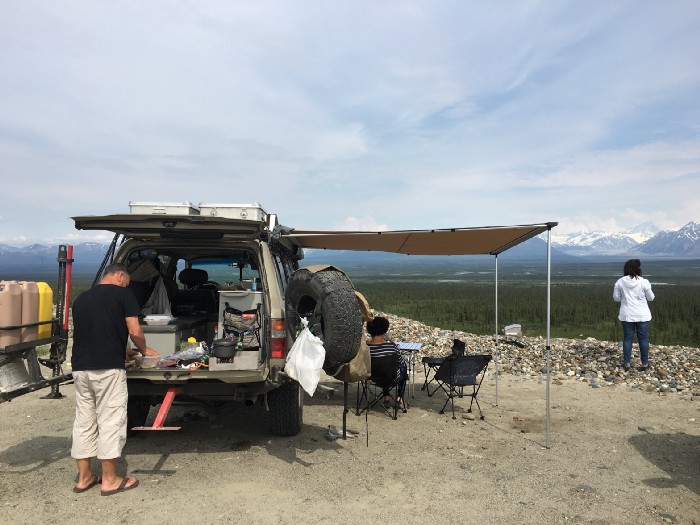

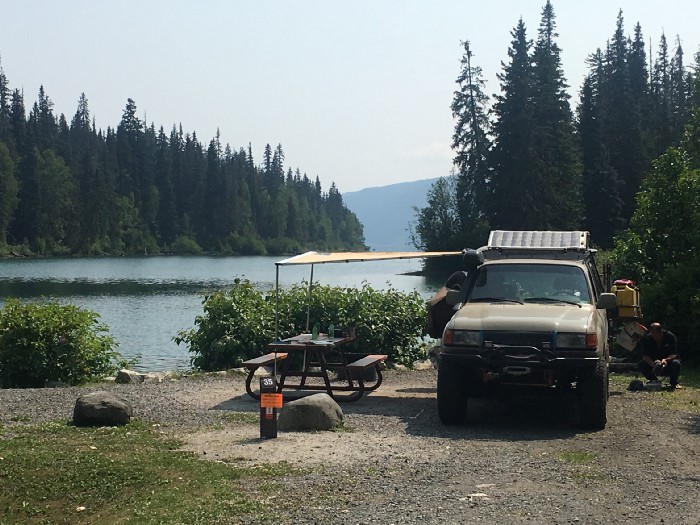

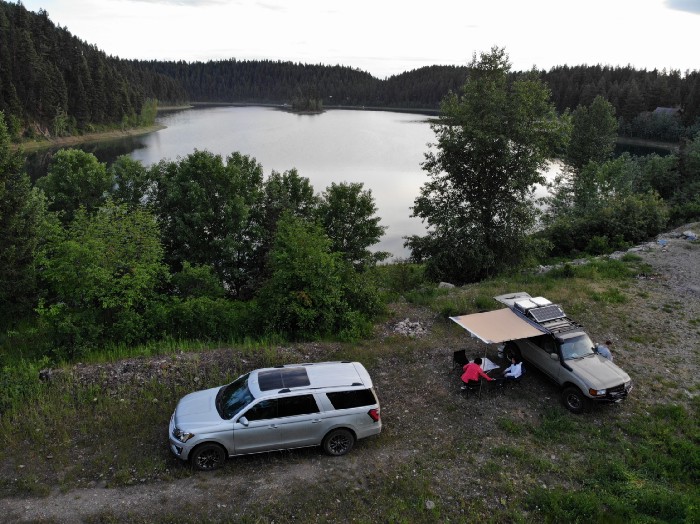

The following night was Lake Inga in BC. The kitchen/water system supported 2 couples and worked well. We placed a bucket under the sink drain, so it will not create a puddle.
קובץ מצורף 125080

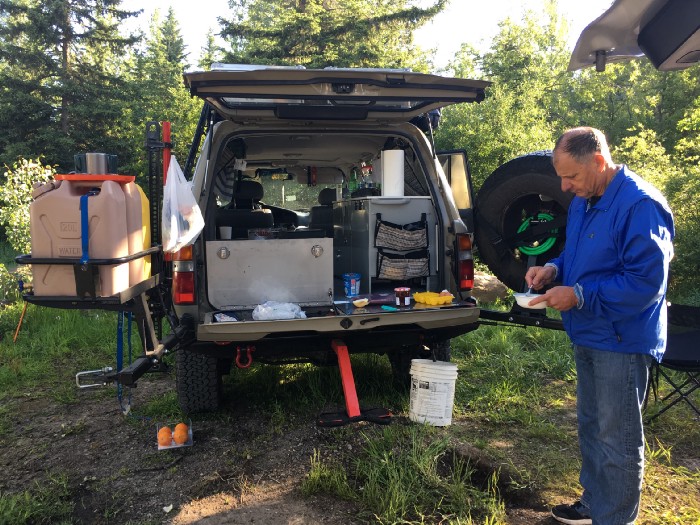

The process was, open the back, pull the stove on the tail gate and cook dinner. The Jerrycan in the back was handy to quick wash. We installed a faucet on the bottom of it, so it would be easy access. The kitchen was all set in the tail gate, except the pots under the sink.
קובץ מצורף 125081

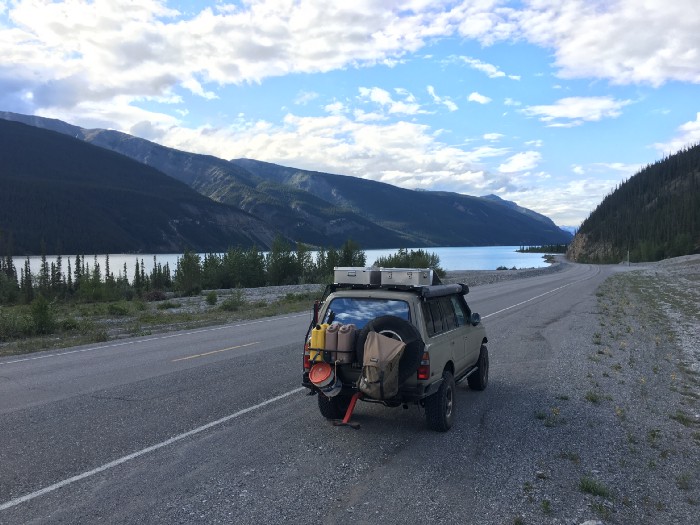

The color we picked for the vehicle, seemed to blend nicely with the background.
קובץ מצורף 125082
After 3000 miles we made it to the Alaska border. The bag tied to the spare tire ‘Trasharoo’ had a portable BBQ and the trash collected during the day.
קובץ מצורף 125083

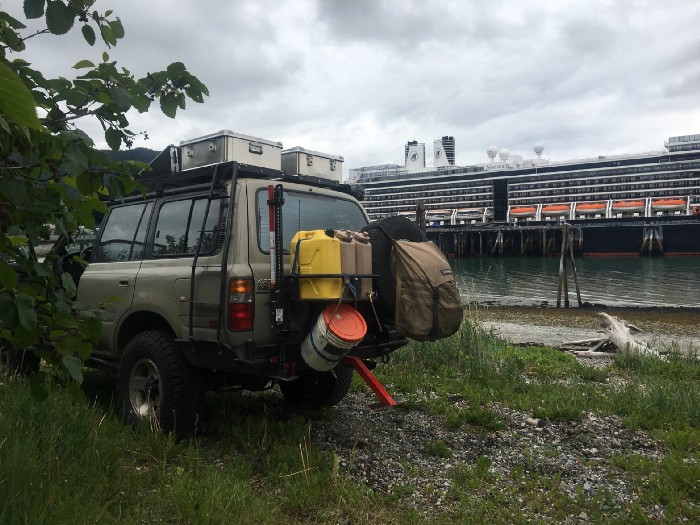

We got to Heynes on a ferry from Skagway. We saw that there are different ways of traveling to Alaska…
קובץ מצורף 125065
Haines Junction was 3200 miles. Evrything was still working great. Hot water heated up in 20 min. 9 gallons to 150F.
קובץ מצורף 125066
Kluane Lake was our stop for the night. Had to take a couple of miles of a rough dirt road to get to the shore. We were alone for the night. No bear visits.
קובץ מצורף 125067
We took a dirt road to Wrangell-St. Elias glacier. We were told that it should take 3.5 hours. Took us 1h 20 min. We were flying!!!!
קובץ מצורף 125068
The next two days we traveled north and made it to the Denali Highway. We figured we will make kebabs for lunch with the Alaska Range on the background. We were almost 4000 miles of travel.
קובץ מצורף 125069

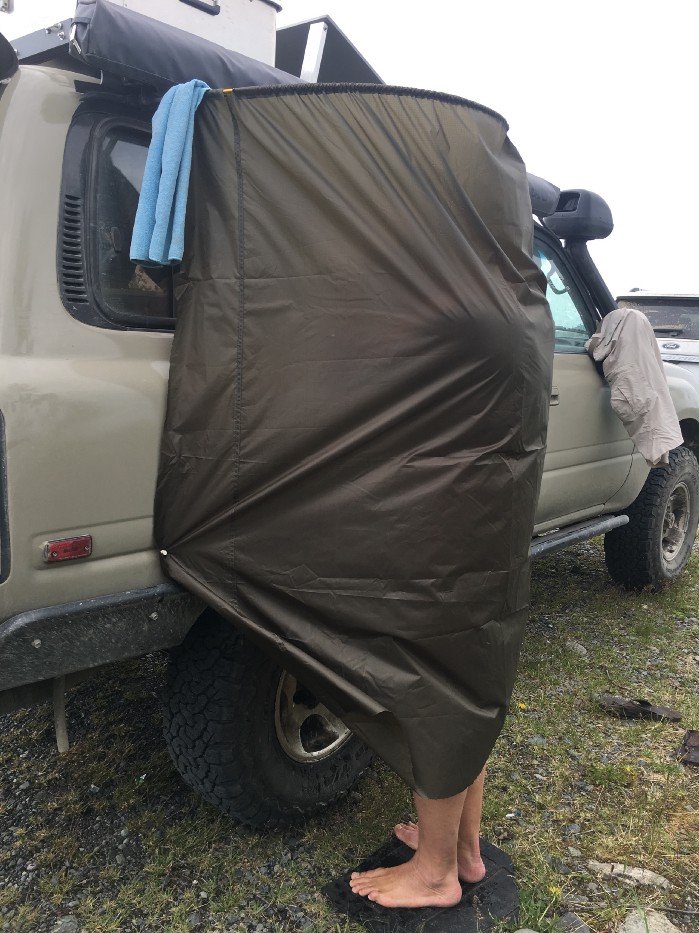

Ha, yes, and some of us decided to take a shower.
קובץ מצורף 125070
We then headed south through Talkeetna, Anchorage to Seward. We camped on the river bank with beautiful views. We logged 5000 miles. One oil change on the road.
קובץ מצורף 125071
The next day we camped on the beach of the Spit in Homer.
קובץ מצורף 125072

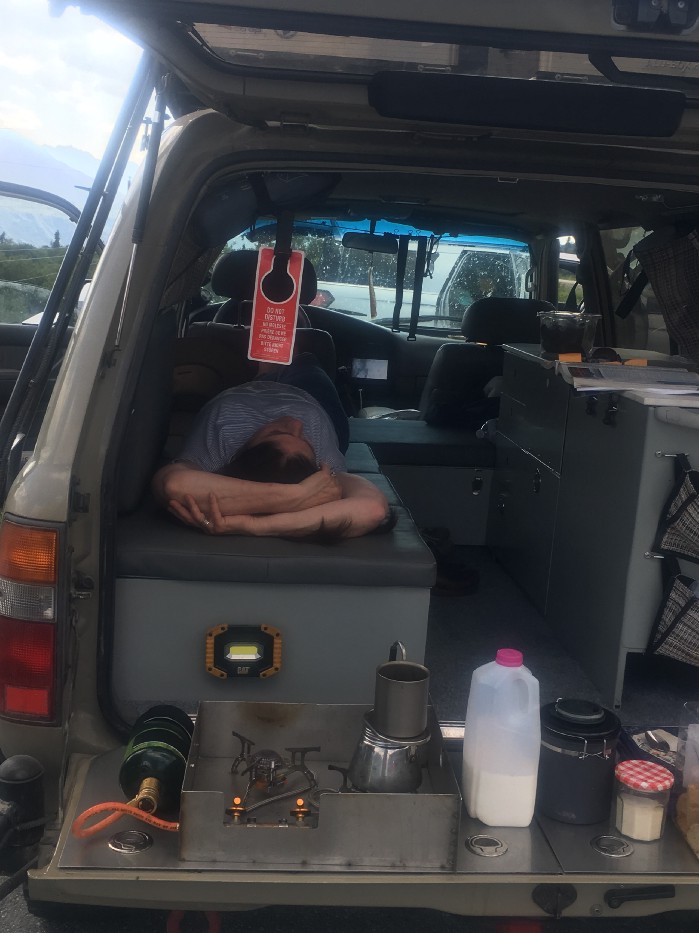

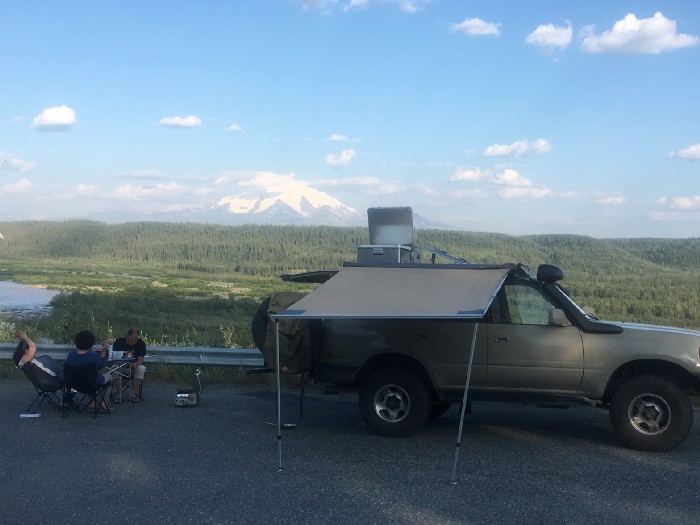

The setup seemed to be working great. We could get food ready in 20 minutes with the table set up and the awning open.
קובץ מצורף 125073
And… coffee in 6 minutes while some of us get to rest.
קובץ מצורף 125074

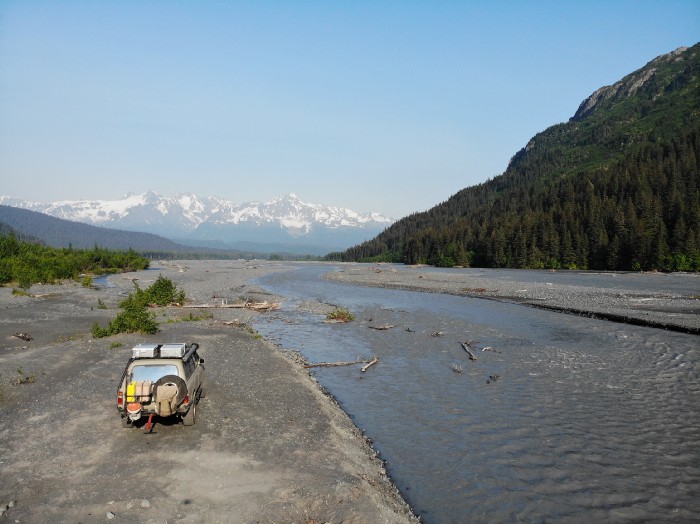

Not traveling with a big RV seemed to pay off. Easy and fast travel on dirt roads and fitting in small ferries.
קובץ מצורף 125059

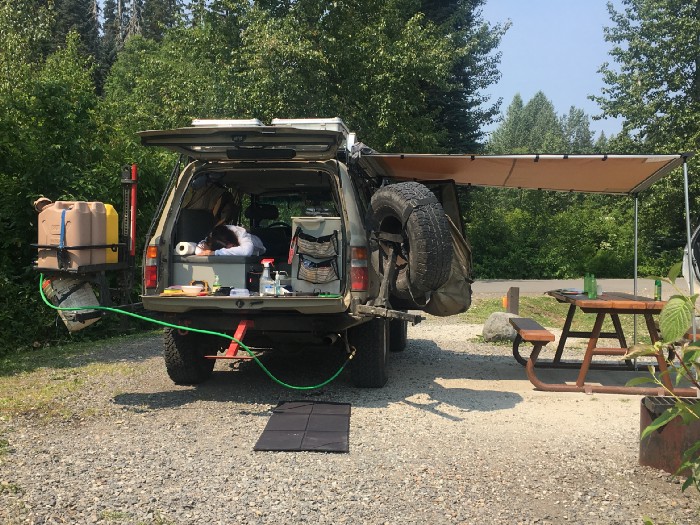

Filling the internal tanks was also possible from the jerrycans. We carried a hose, so we could fill water anywhere.
קובץ מצורף 125060
Our last camp was in a state camp and the only one that needed a fee. Meziadin Junction.
קובץ מצורף 125061
We made it back to Mount Shasta after 7500 miles.
קובץ מצורף 125062
And made it home after almost 8000 miles and 25 days. Time to start planning the next trip. The vehicle was flawless. 2 screws came loose on the top of the A/C condenser. We had spares and installed them in a few minutes.
קובץ מצורף 125063

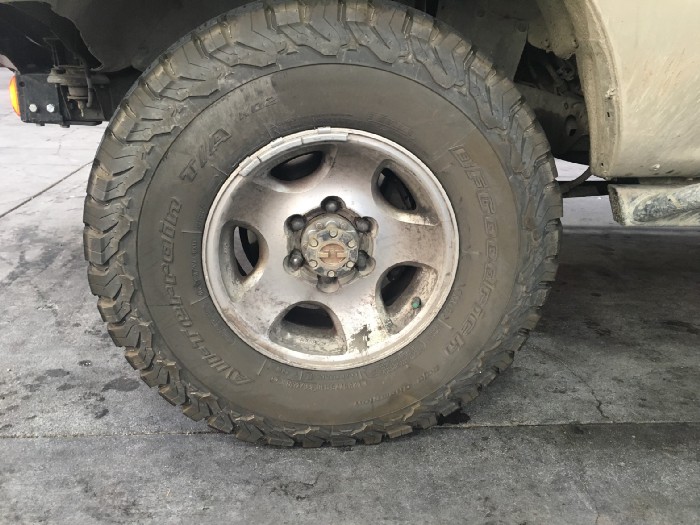

This wheel has done 5000000 revolutions.
קובץ מצורף 125064
Hope you enjoyed the blog. We enjoyed making it!
יפה מאד עופר!
נשלח מהנייד
מדהים!
ממה בנוי הריהוט? איזה פרופילים אלה? וממה עשוי החיפוי?
עופר כתב לי שהבלוג הועבר לאתר מתאים יותר לטיולי שטח ויש שם הרבה עדכונים.
אני אנסה בימים הקרובים לעדכן בהתאם גם את הפוסט הזה, בינתיים מי שרוצה להתרשם לבד - https://www.overlandbound.com/forums...cruiser.27601/
תראו מה מצאתי
https://youtu.be/KVhfG-yXYR4
Sent from my LG-H815 using Tapatalk
https://www.youtube.com/watch?v=KVhfG-yXYR4
סרטון WALK AROUND על הרכב של עופר.
מעורר השראה. באמת.
